Welding A234 WP5 45 Degree Elbow 1/2NB - 48NB For Plumbing Installation
Price:
Negotiable
MOQ:
Negotiation
Delivery Time:
25-35 days
Brand:
Y & G
Product Description

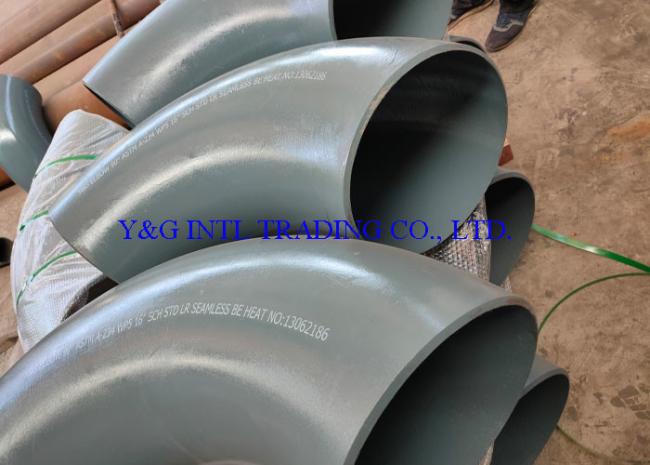

A234 WP5 45 Degree Elbow and fittings
Bend is a commonly used connection pipe for plumbing installation. It is used to connect the pipe and change the direction of the pipe.
Standard:GB 12459,GB/T 13401,SH 3408,SH3409,HG/T 21635,HG/T 21631,SY/T 0510,ASME B16.9,ASME B16.28
Drawing:
Nominal Pipe Size |
Center to End |
Center to Center |
Back to Back |
|||||
| 45°Elbow | 90°Elbow | 180°Return | ||||||
| DN | NPS | H | F | P | K | |||
| DN | NPS | LR |
LR |
SR |
LR |
SR |
LR |
SR |
| 15 | 1/2 | 16 | 38 | / | 76 | / | 48 | / |
| 20 | 3/4 | 19 | 38 | / | 76 | / | 51 | / |
| 25 | 1 | 22 | 38 | 25 | 76 | 51 | 56 | 41 |
| 32 | 11/4 | 25 | 48 | 32 | 95 | 64 | 70 | 52 |
| 40 | 11/2 | 29 | 57 | 38 | 114 | 76 | 83 | 62 |
| 50 | 2 | 35 | 76 | 51 | 152 | 102 | 106 | 81 |
| 65 | 21/2 | 44 | 95 | 64 | 190 | 127 | 132 | 100 |
| 80 | 3 | 51 | 114 | 76 | 229 | 152 | 159 | 121 |
| 90 | 31/2 | 57 | 133 | 89 | 267 | 178 | 184 | 140 |
| 100 | 4 | 64 | 152 | 102 | 305 | 203 | 210 | 159 |
| 125 | 5 | 79 | 190 | 127 | 381 | 254 | 262 | 197 |
| 150 | 6 | 95 | 229 | 152 | 457 | 305 | 313 | 237 |
| 200 | 8 | 127 | 305 | 203 | 610 | 406 | 414 | 313 |
| 250 | 10 | 159 | 381 | 254 | 762 | 508 | 518 | 391 |
| 300 | 12 | 190 | 457 | 305 | 914 | 610 | 619 | 497 |
| 350 | 14 | 222 | 533 | 356 | 1067 | 711 | 711 | 533 |
| 400 | 16 | 254 | 610 | 406 | 1219 | 813 | 813 | 610 |
| 450 | 18 | 286 | 686 | 457 | 1372 | 914 | 914 | 686 |
| 500 | 20 | 318 | 762 | 508 | 1524 | 1016 | 1016 | 762 |
| 550 | 22 | 343 | 838 | 559 | 1676 | 1118 | 1118 | 838 |
| 600 | 24 | 381 | 914 | 610 | 1829 | 1219 | 1219 | 914 |
| 650 | 26 | 405 | 991 | 660 | ||||
| 700 | 28 | 438 | 1067 | 711 | ||||
| 750 | 30 | 470 | 1143 | 762 | ||||
| 800 | 32 | 502 | 1219 | 813 | ||||
| 850 | 34 | 533 | 1295 | 864 | ||||
| 900 | 36 | 565 | 1372 | 914 | ||||
| 950 | 38 | 600 | 1448 | 965 | ||||
| 1000 | 40 | 632 | 1524 | 1016 | ||||
| 1050 | 42 | 660 | 1600 | 1067 | ||||
| 1100 | 44 | 695 | 1676 | 1118 | ||||
| 1150 | 46 | 727 | 1753 | 1168 | ||||
| 1200 | 48 | 759 | 1829 | 1219 | ||||
Application: Due to its good comprehensive performance, the bend is widely used in basic projects such as chemicals, construction, water supply, drainage, oil, heavy and heavy industries, refrigeration, sanitation, water heating, fire protection, electricity, aerospace, and shipbuilding.
