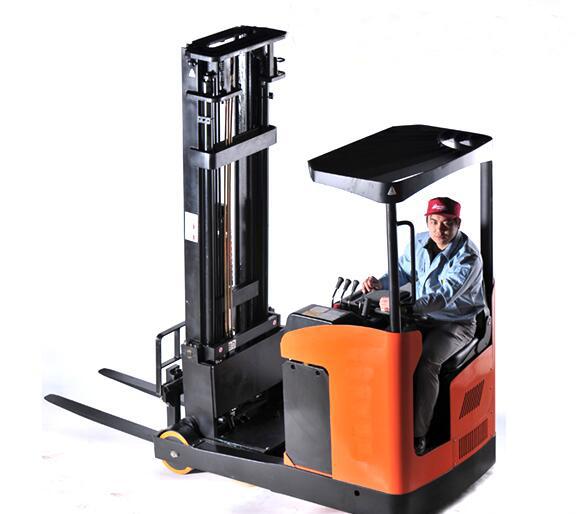

Powerful Battery Road Construction Machinery Electric Reach Pallet Truck
Factory price Electric Reach Pallet Truck
1. Max. Capacity reaches 2000 kgs
2. Max. Lifting height reaches 9500 mm
3. German ZF drive unit, German mast, durable and good-looking
4. Japan SHIMADZU hydraulic pumping station
5. ZAPI electrical controller, reliable and easy to operate. Curtis electric controller available also
6. In addition to raising, lowering, forwards and backwards motions, the fork also can realize tilting motion
7. Max. Free lift (forks lift up and down but mast keep still) height reaches 3200mm
8. Forks could move forwards at 3 degrees and backwards at 5 degrees
9. Mast could move forwards and backwards with forks at 600mm
10. Powerful battery could guarantee for 10 hours continuous operating time per day
11. The mast needs to be disassembled in shipment due to height limit in container
12. Equipments with CE certificate
| Model No. | BR10/30 | BR10/50 | BR10/62 | BR15/30 | |
| Capacity | Q(kg) | 1000 | 1000 | 1000 | 1500 |
| Load Center | C(mm) | 500 | 500 | 500 | 500 |
| Net. Weight | kg | 2000 | 2500 | 2600 | 2300 |
| Free Lifting Height | H1(mm) | 1500 | 1700 | 1900 | 1500 |
| Lifting Height | H2(mm) | 3000 | 5000 | 6200 | 3000 |
| Overall Length | A1(mm) | 2260 | 2410 | 2410 | 2260 |
| Overall Width | B1(mm) | 1020 | 1020 | 1020 | 1020 |
| Overall Height | H3(mm) | 2086 | 2240 | 2640 | 2086 |
| Truning Radius | R(mm) | 1690 | 1690 | 1690 | 1690 |
| Run Speed(On load) | Km/h | 6/6.2 | 6/6.2 | 6/6.2 | 6/6.2 |
| Lift Speed(On load) | m/s | 0.19/0.2 | 0.19/0.2 | 0.19/0.2 | 0.19/0.2 |
| Driving Motor | kw | 2.0 | 2.0 | 2.0 | 2.0 |
| Lifting Motor | kw | 5.0 | 5.0 | 5.0 | 5.0 |
| Battery | V/Ah | 24/400 | 48/400 | 48/400 | 48/400 |
