86KW 2300rpm 10 Ton Underground Mining Machines / Mining Dump Truck
Price:
Negotiation
MOQ:
1-10 pcs
Delivery Time:
15 days
Brand:
Bilon
Product Description

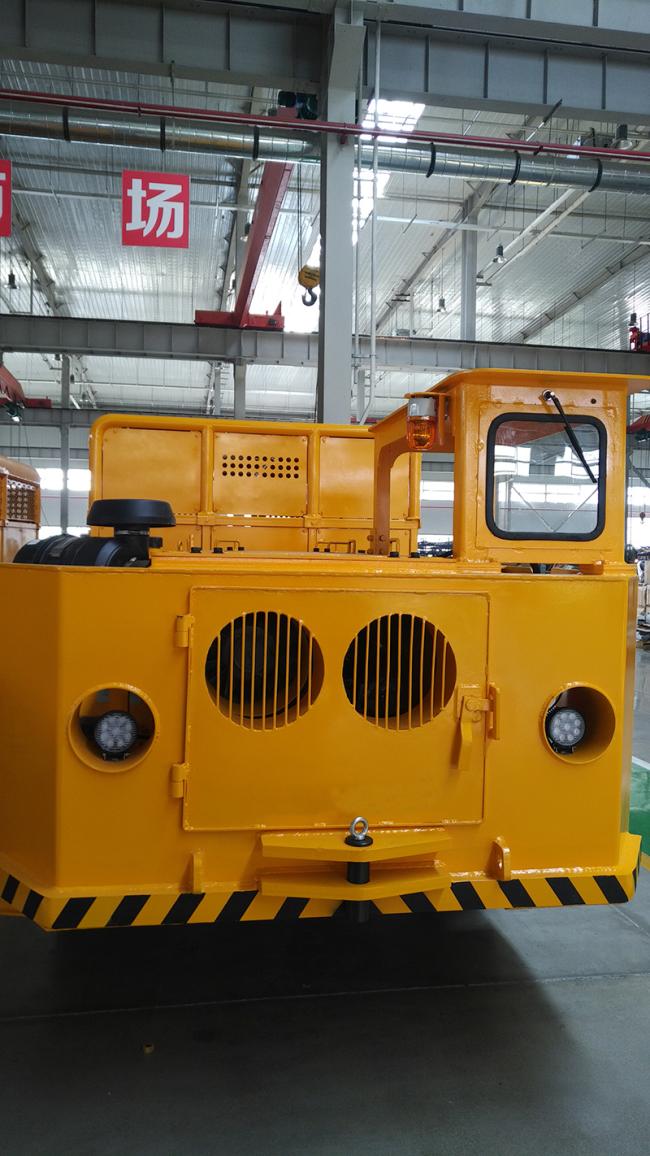

10 Ton Underground Dump Truck
1,Full hydraulic, centre-point articulation, power steering with two double acting cylinders. Steering controlled by stick.
2,These brakes are the Spring Applied, Hydraulically Released type, with fully enclosed, multiple wet discs that are at each wheel end.
3,4-wheel Rigid axles, with fully enclosed, multiple wet discs brakes at each wheel end. No-Spin on rear axle
Diesel Engine: |
DEUTZ (made in Germany) |
Model |
BF4L914 |
| Rated Power | 86KW/2300rpm / 86KW/2300rpm |
| Cooling System | Air-Cooled,turbo-charged |
| Exhaust System | Exhaust conditioner silencer and purifier |
| Tire | 10.00-20 |
| Weight | 10200 KG |
| Rated Payload | 10000 KG |
| Dimension | L5600mm×W1500mm×H1600mm |
| Carriage Volume | 2.8 m³ |
Carriage Dumping Angle |
65° |
Wheelbase |
3230mm |
| Min. Ground Clearance | 240mm |
| Carriage Oscillation Angle | ±8° |
| Articulated Steering Angle | ± 42 ° |
