4 Way Male Sealed Oxygen Sensor Electrical Connector 7282-7040-10
4 Way Male Sealed Oxygen Sensor Electrical Connector 7282-7040-10
Description
4 Way Male Sealed Oxygen Sensor Electrical Connector for T oyota
Height : 21.6 mm
Width : 20 mm
Length: 37.2mm
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
Contact resistance :Initial 3mΩ Max.
after durability 10mΩ Max.
Leak current : 100μA Max.
Insulation resistance: 100MΩ Min.
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
These connectors come with the terminals and seals
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
4 Way Male Sealed Oxygen Sensor Electrical Connector 7282-7040-10 |
| P/N | 7282-7040-10 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

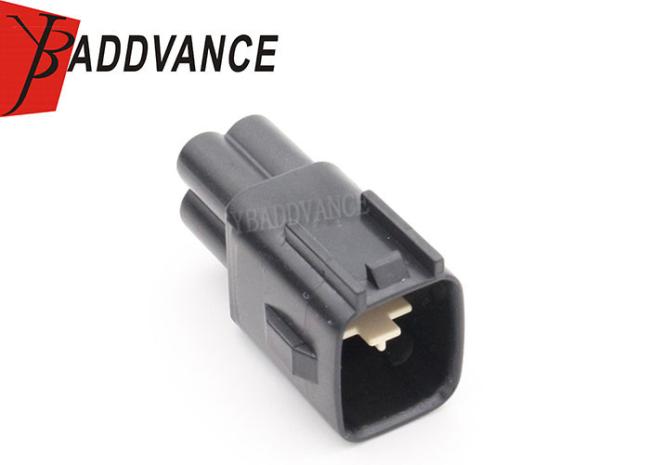

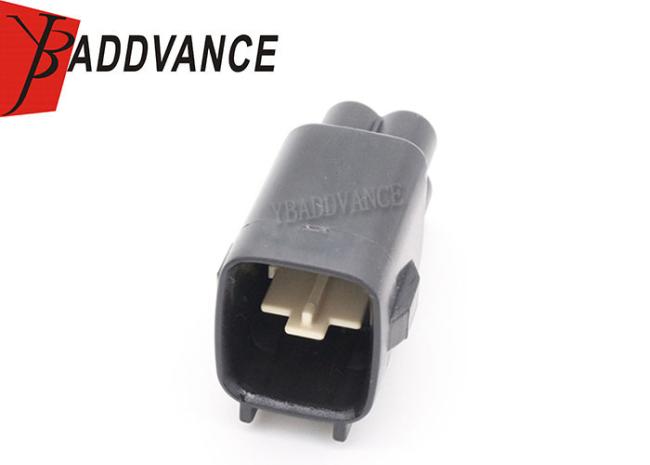

Product Picture Details
