6188-4739 3 Way Sumitomo Center Rib Tail Light Connector for Honda
6188-4739 3 Way Sumitomo Center Rib Tail Light Connector for Honda
Description
3 Way Sumitomo Center Rib Tail Light Connector for Honda
It is Waterproof Car Plug Turn Socket Auto Connector Harness Repair Kit for Civic Element CR-V
Applications
Some late Model CBR1000 MAP, TPS Sensors
Some late model H onda tail light connectors
Width :20.1 mm
Height: 17.7 mm
Length :35.7 mm
1 Row , 3 Way
Mating Part : 6189-0887
It is middle rib/slot , please check it carefully before you buy it
Specification
|
Item name |
6188-4739 3 Way Sumitomo Center Rib Tail Light Connector for Honda |
| P/N | 6188-4739 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

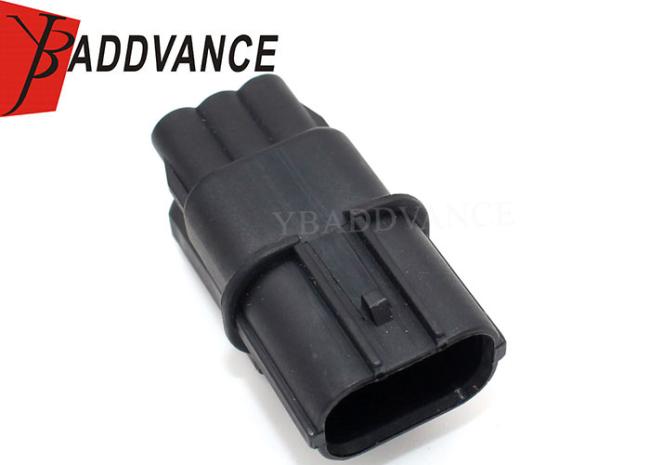

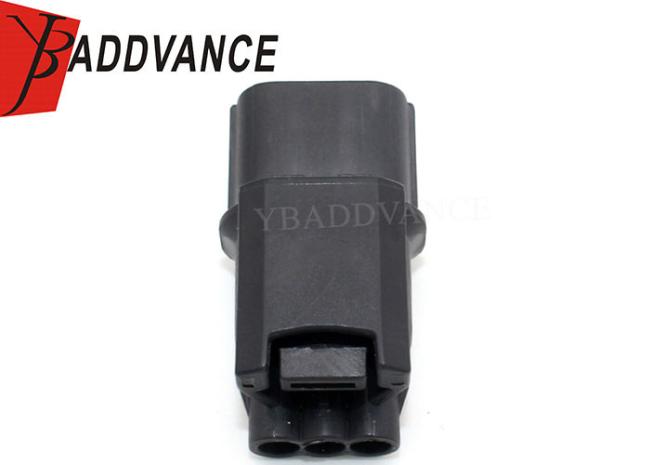

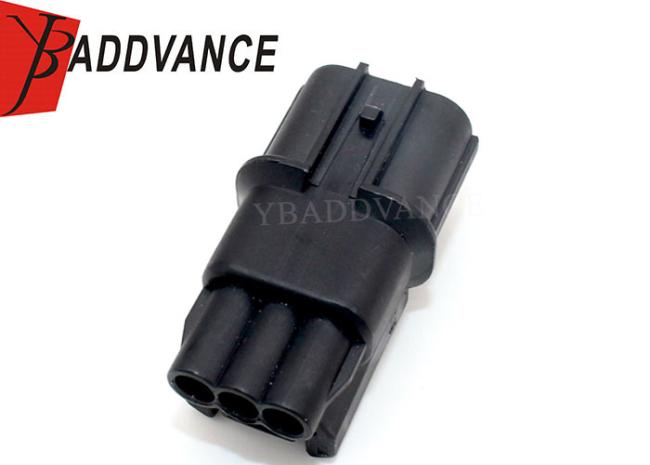

Product Picture Details
