2 Pin Male Sumitomo Pressure Sensor Headlamp Connector 6189-7036
2 Pin Male Sumitomo Pressure Sensor Headlamp Connector 6189-7036
Description
2 Pin Male Sumitomo Pressure Sensor Headlamp Connector
It is HV/HVG Series 040 Automotive Connector
1 Row ,2 way
Mating Part : 6189-6905
It come with :1 housing +2 wire seal +2 terminals
Housing:PBT+G,PA66+GF
Terminal:Copper Alloy,Brass,Phosphor Bronze.
Seal : slicon
We can provide dummy plug if you need it
This Connector has top rib/ slot,please check the photos to ensure that it fits your application
Specification
|
Item name |
2 Pin Male Sumitomo Pressure Sensor Headlamp Connector 6189-7036 |
| P/N | 6189-7036 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

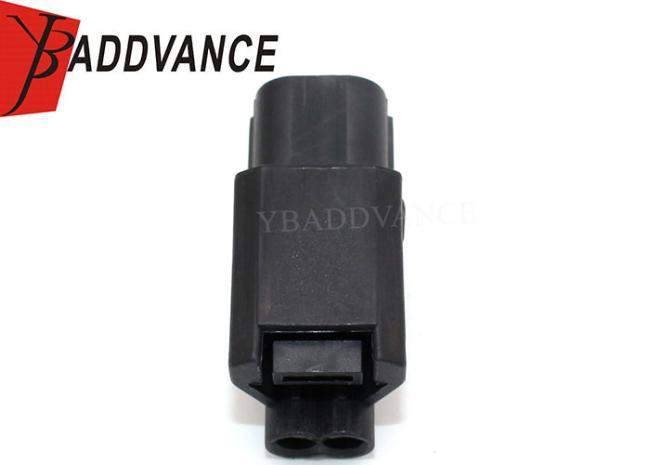

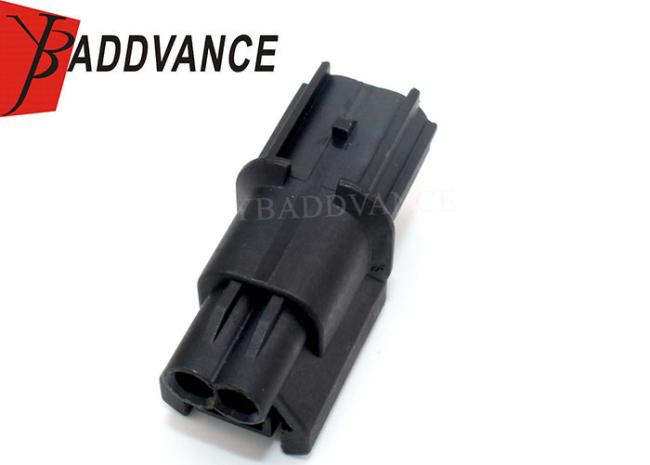

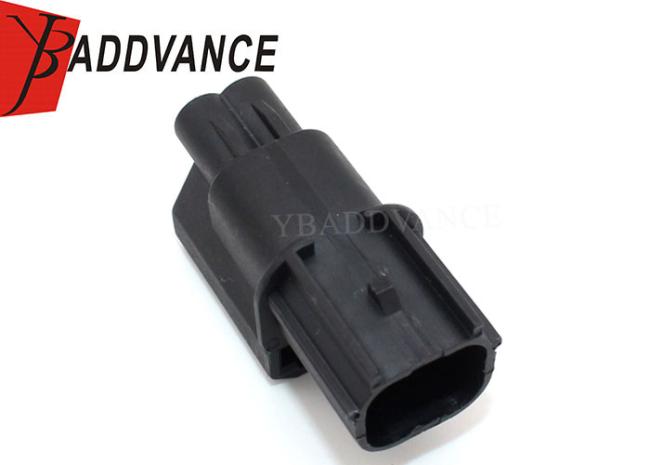

Product Picture Details
