2 Pin Bosch Compact Connector , Bosch Injector Connector 19240396 1928403874
2 Pin Bosh Diesel Injectors Compact Connector 19240396 1928403874
Description
2 Pin Bosh Diesel Injectors Compact Connector
It is waterproof connector fit for Bosh Diesel Injectors
Series: Compact 1.1a
Height: 20.2mm
Width: 26 mm
Length : 30.7mm
It come with : 1 Housing Connetor +4 Terminals +4 Wire Seal+1 Lock+1 Inner Seal
Housing: PA66
Lock: PA66
Terminal: Brass/Phosphor Bronze/
Seal: Silicon Rubber
Wire fits from 18 to 22 AWG
Maximum Operating Temperature: 150℃
Minimum Operating Temperature: -40℃
Specification
|
Item name |
2 Pin Bosh Diesel Injectors Compact Connector 19240396 1928403874 |
| P/N | 19240396 1928403874 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

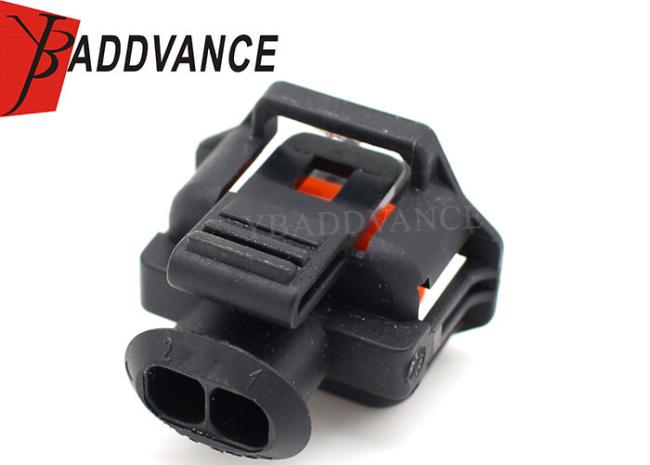

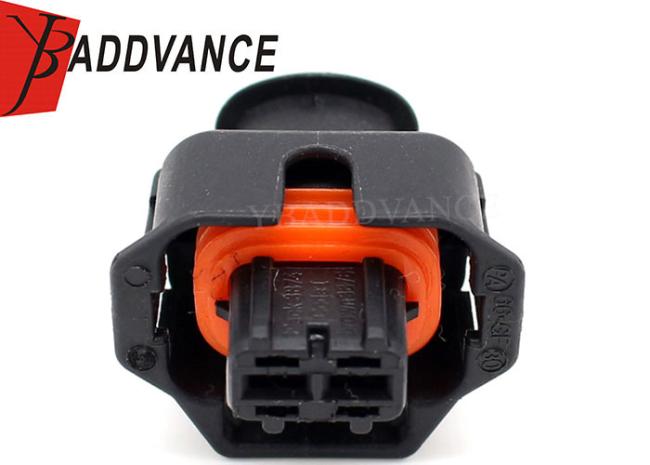

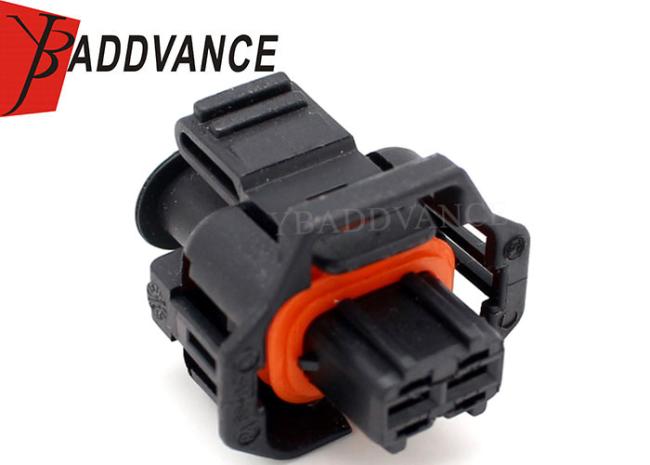

Product Picture Details
