1928403968 1 928 403 968 3 Way Bosh BDK Diesel Injection Sensor Connector
1928403968 1 928 403 968 3 Way Bosh BDK Diesel Injection Sensor Connector
Description
3 Way Bosh BDK Diesel Injection Sensor Connector
oem number : 1928403968, 1928403966, 1928300599, 1928498056,
Width : 26mm
Height : 20.25mm
Length :30.7mm
Series: Compact 1.1a
Housing: PA66
Lock: PA66
Terminal: Brass/Phosphor Bronze/
Seal: Silicon Rubber
The connector can used for engine and sensor
If you have some questions for it , please contact us
Specification
|
Item name |
1928403968 1 928 403 968 3 Way Bosh BDK Diesel Injection Sensor Connector |
| P/N | 1928403968 1 928 403 968 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

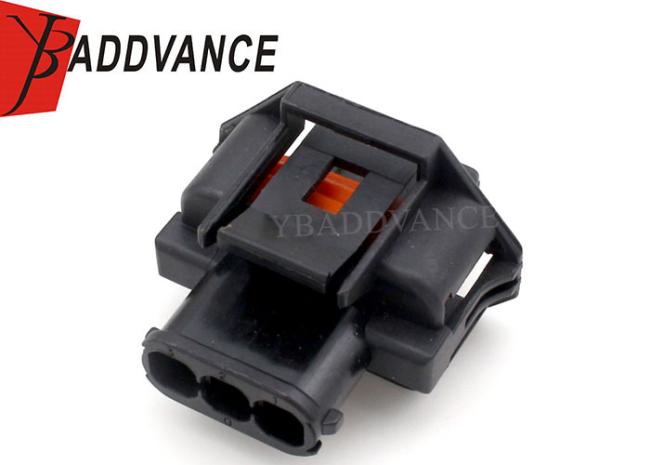

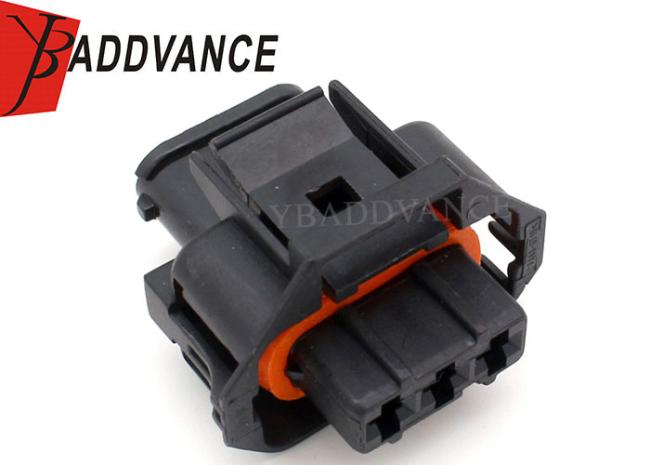

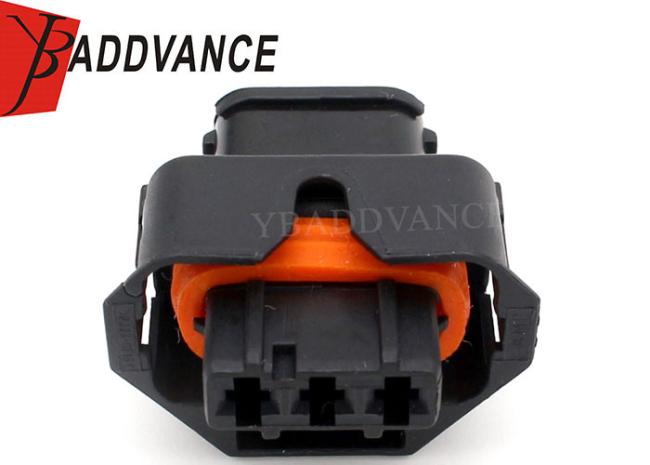

Product Picture Details
