282192-1 4 Way AMP Automotive Connectors O2 Sensor Ignition Coil Connector
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
282192-1 4 Way AMP Junior Power Timer Series O2 Sensor Ignition Coil Connector
Description
4 Way AMP Junior Power Timer Series O2 Sensor Ignition Coil Connector
4 pin car ignition coil plug oxygen sensor connector
Series: Junior Power Timer
Height : 24.5 mm
Width : 35.5 mm
Length : 38.2 mm
Width : 35.5 mm
Length : 38.2 mm
Pitch Spacing: 5mm
Voltage: 12V
IP rating: IP54K
Material type: plastic and copper
IP rating: IP54K
Material type: plastic and copper
If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
282192-1 4 Way AMP Junior Power Timer Series O2 Sensor Ignition Coil Connector |
| Part Number | 282192-1 |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

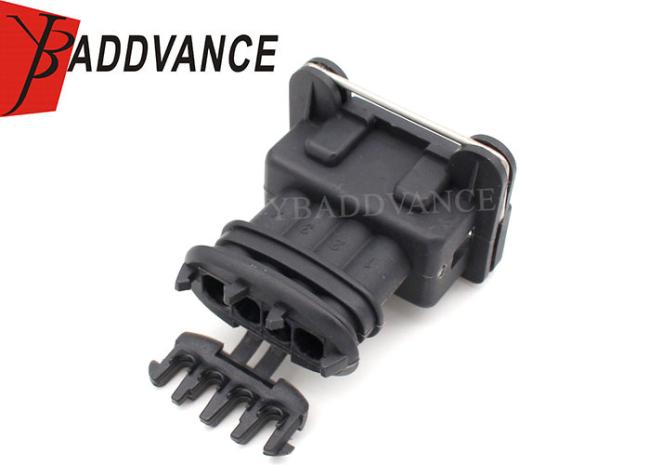

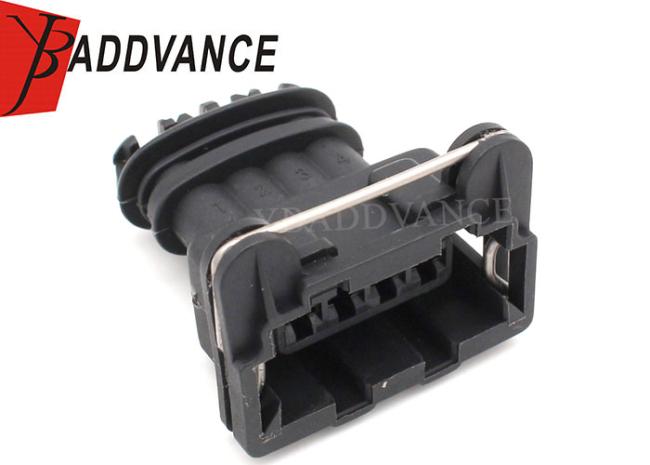

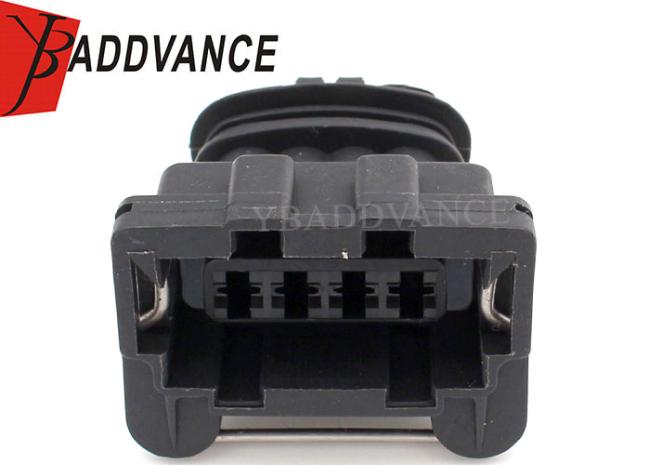

Product Picture Details
