282191-1 Amp Junior Power Timer Connector / 3 Pin Connector Female ISO 9001 Approved
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
282191-1 3 Pin Female Junior Power Timer AMP Receptacle Connector
Description
3 Pin Female Junior Power Timer AMP Receptacle Connector
This timer receptacle is suitable for use with junior power timer socket contacts.
Pitch : 5 mm
Height :24.5mm
Width : 30.4mm
Length : 38.2 mm
Mounting Type: Cable Mount
Series: Junior Power Timer
These receptacle housings are sealed and have a secondary locking mechanism.
Specification
|
Item name |
282191-1 3 Pin Female Junior Power Timer AMP Receptacle Connector |
| P/N | 282191-1 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

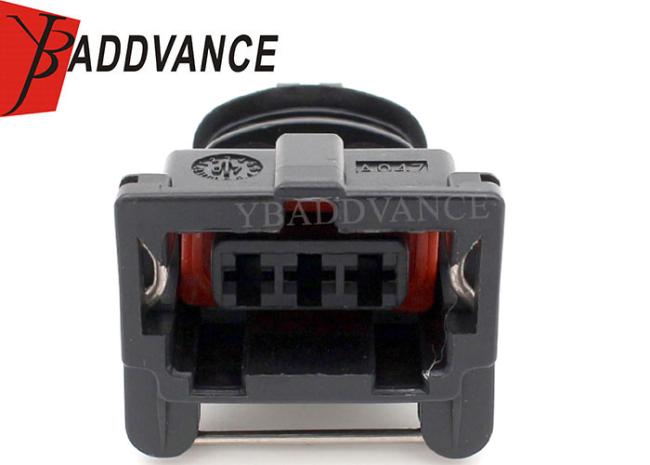

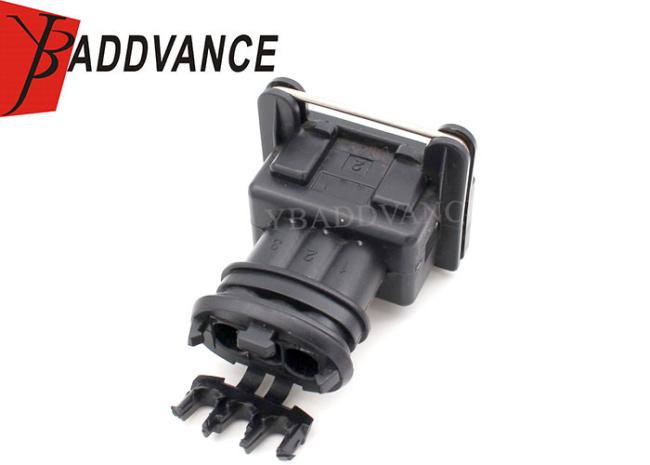

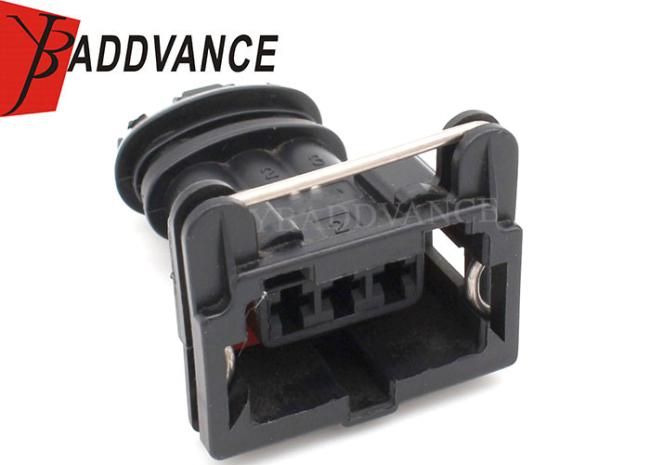

Product Picture Details
