7 Pin Male TE Connectivity AMP Tyco Waterproof Housing Connector
7 Pin Male TE Connectivity AMP Tyco Waterproof Housing Connector
Description
7 Pin Male TE Connectivity AMP Tyco Waterproof Housing Connector.
Series: Junior Power Timer
The steel top spring provides additional locking protection
Height : 14.8 mm
Width :45.3 mm
Length : 38 mm
These water resistant connectors are manufactured for the automotive market, consumer appliance industries and most other low voltage applications.
They are ideal for many applications including car, marine, lorry, motorcycle, race car, caravan etc. and are connected and disconnected quickly and safely.
Specification
|
Item name |
7 Pin Male TE Connectivity AMP Tyco Waterproof Housing Connector |
| P/N | BC7071A-3.5-11 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
7 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 7 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

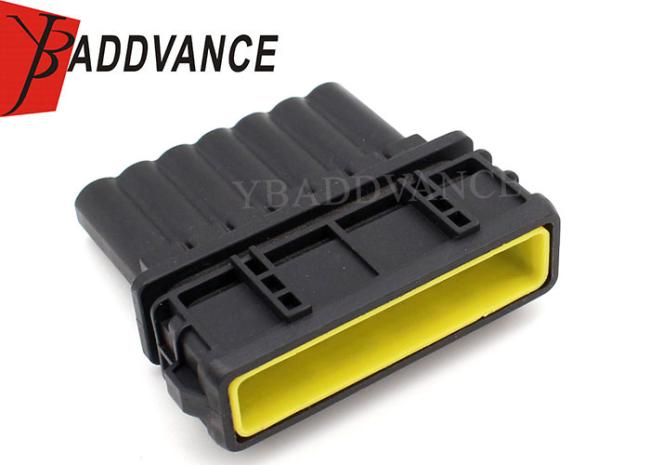

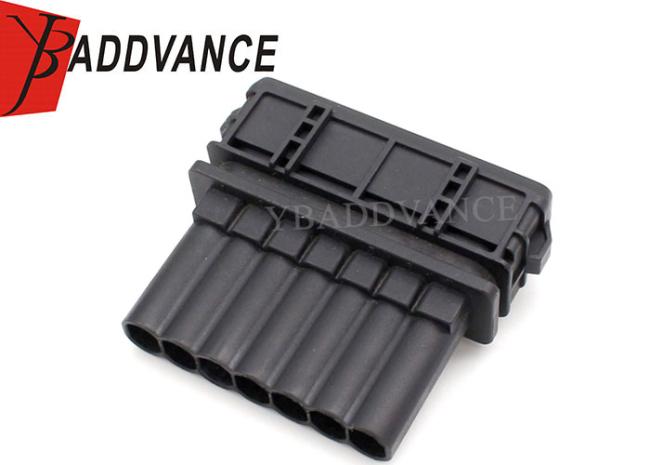

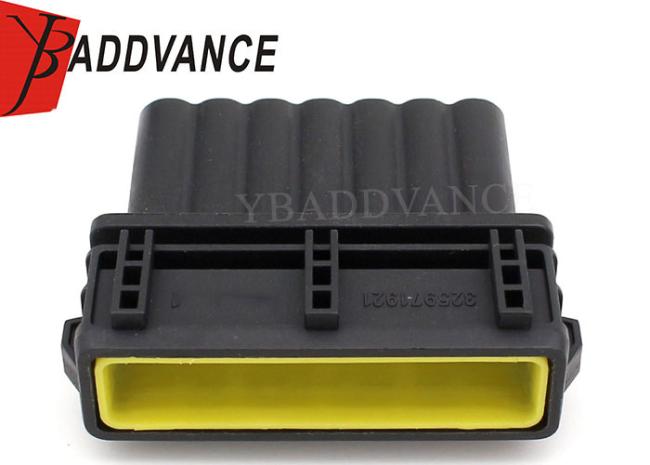

Product Picture Details
