14 Pole Automotive Electrical Connectors Jr 5559 Series 39-01-2141 39012141
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
39-01-2141 39012141 14 Pole Mini-Fit Jr. 5559 Series Connector
Description
14 Pole Mini-Fit Jr. 5559 Series Connector
The Mini-Fit family also offers blind mating, TPA and higher current options.
Length:36mm
Width:12mm
Depth:23.9mm
Pitch:4.2mm
Series : Mini-Fit Jr. 5559 Series
These connectors are available in single row or dual row 2- to 24-circuit options, feature multiple plating, and resin options.
The core attributes of Mini-Fit Jr. including: fully isolated terminals, positive locking housings, low-engagement forces ,polarized housings.
Specification
|
Item name |
39-01-2141 39012141 14 Pole Mini-Fit Jr. 5559 Series Connector |
| P/N | 39-01-2141 39012141 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
14 pin Unsealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
Unsealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 14 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

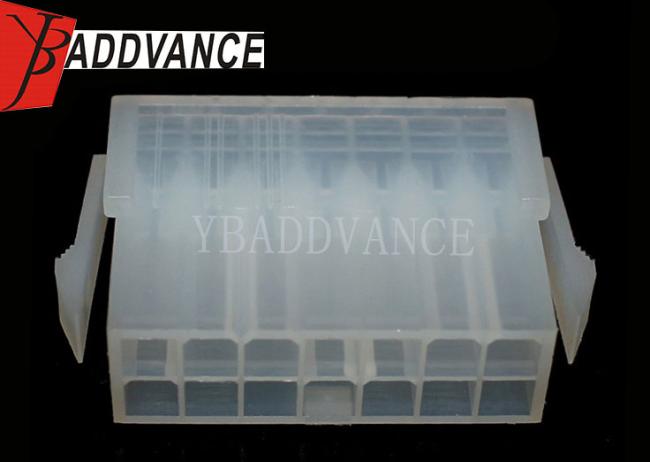

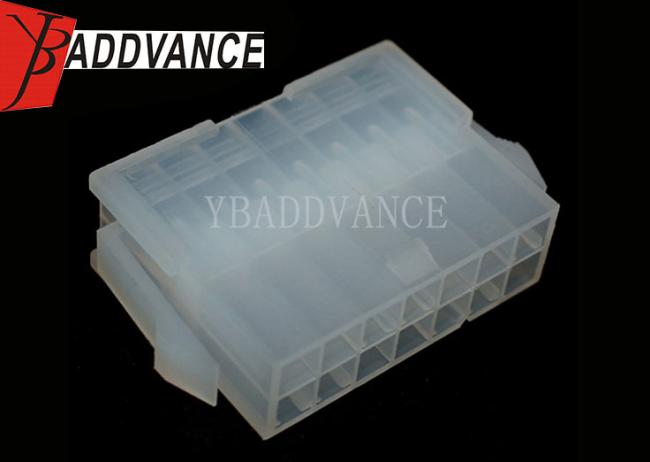

Product Picture Details
