Sumitomo MT 090 Series Tail Light Connector 6187-3281 3 Way Sealed Connector
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6187-3281 3 Way Sumitomo MT 090 Series Tail Light Connectors
Description
3 Way Sumitomo MT 090 Series Tail Light Connectors
It is used on some K awasaki Tail light connectors
Height : 14.6 mm
Length : 23.4 mm
Width : 36 mm
Mating parts: 6180-3261
It included : 1 Housing connector + 3 Terminals +3 Wire Selas +1 Inner Seals
Specification
|
Item name |
6187-3281 3 Way Sumitomo MT 090 Series Tail Light Connectors |
| P/N | 6187-3281 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

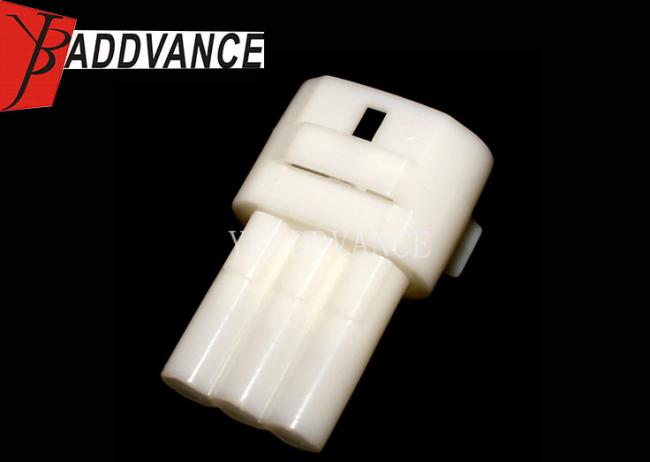

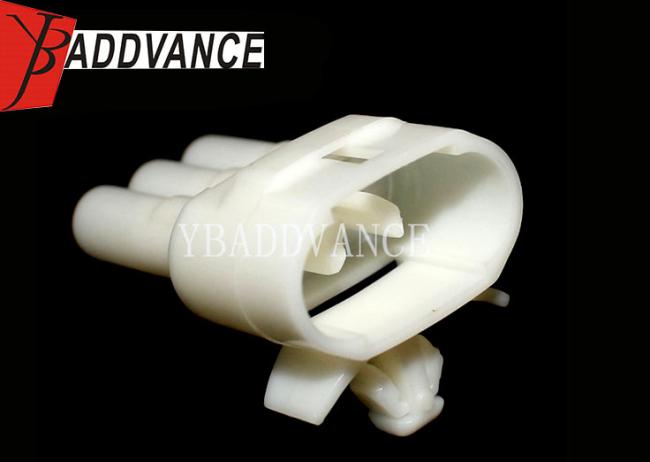

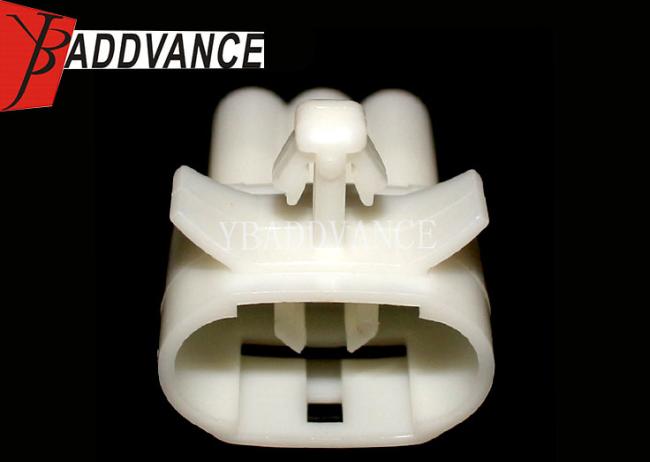

Product Picture Details
