White 6 Pin Electrical Connector / Jst Female Connector For Turn Signal Light
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
JST-06R-JWPF-VSLE 6 Pin JWPF Series JST Connector For Turn Signal Light
Description
6 Pin JWPF Series JST Connector For Turn Signal Light
Pitch Spacing : 2mm
Height : 9.5 mm
Length : 16.5 mm
Width : 8.7 mm
Mating parts: JST-06T-JWPF-VSLE
Rated current: Max 3A AC/DC
Note : Tab contact to be mounted in tab housing and receptacle contact to be mounted in receptacle housing.
Specification
|
Item name |
JST-06R-JWPF-VSLE 6 Pin JWPF Series JST Connector For Turn Signal Light |
| P/N | JST-06R-JWPF-VSLE |
|
Wire Size |
22-26AWG |
|
Operating Temperature range |
-55℃~85℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

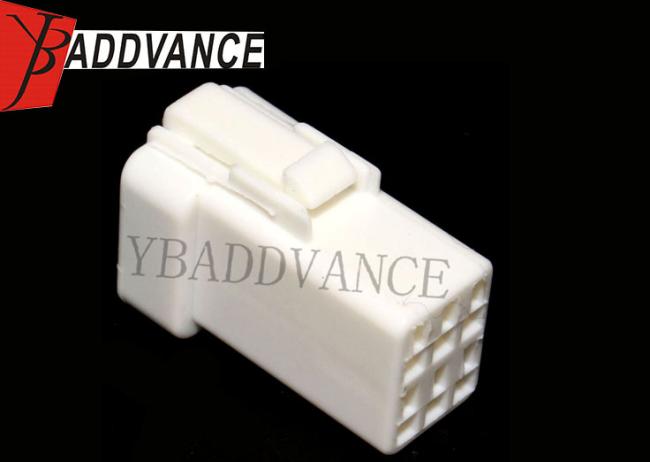

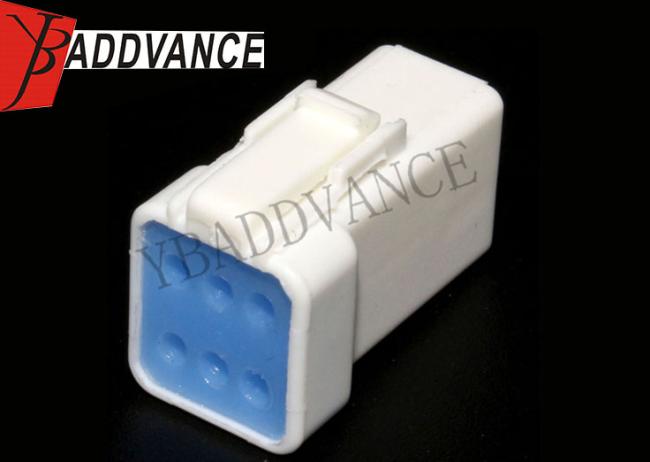

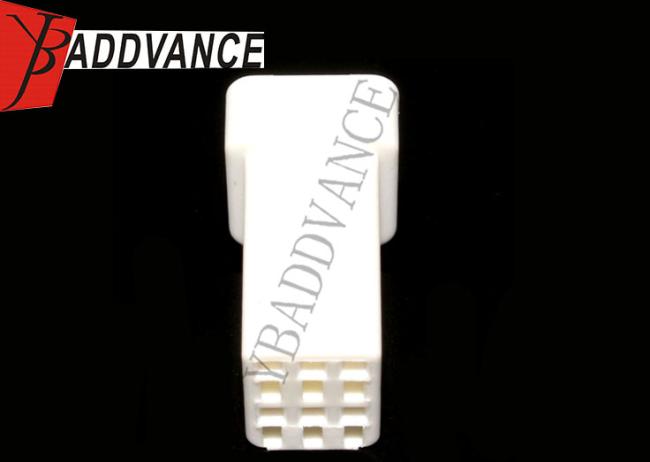

Product Picture Details
