6 Way Male JWPF Series Automotive Electrical Connectors With Terminals
JST-06T-JWPF-VSLE 6 Way Male JWPF Series Connector With Terminals
Description
6 Way Male JWPF Series Connector With Terminals
Pitch Spacing : 2mm
Height : 9.8 mm
Length : 25.8 mm
Width : 12.8 mm
IP rating: IPX7
Mating parts: JST-06R-JWPF-VSLE
Applications : Appliances: such as refrigeration and washing machines
Automation: such as light cluster units and door mirror control units
Rail: such as internal and external lighting systems and low current power systems
Industrial: factory automation
Lighting: general low current harness looms Note Tab contact to be mounted in tab housing and receptacle contact to be mounted in receptacle housing
Specification
|
Item name |
JST-06T-JWPF-VSLE 6 Way Male JWPF Series Connector With Terminals |
| P/N | JST-06T-JWPF-VSLE |
|
Wire Size |
22-26AWG |
|
Operating Temperature range |
-55℃~85℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

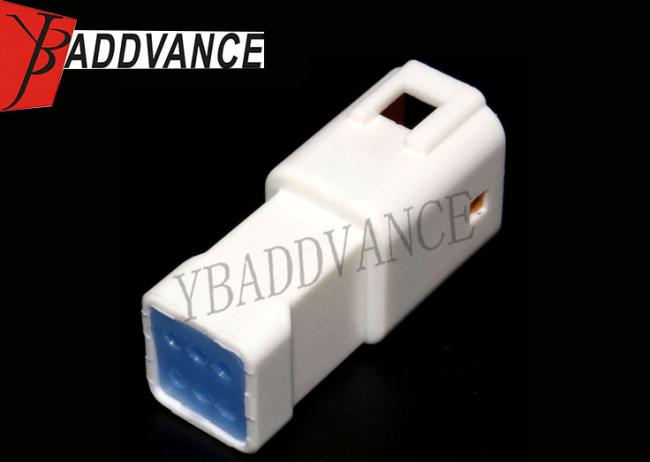

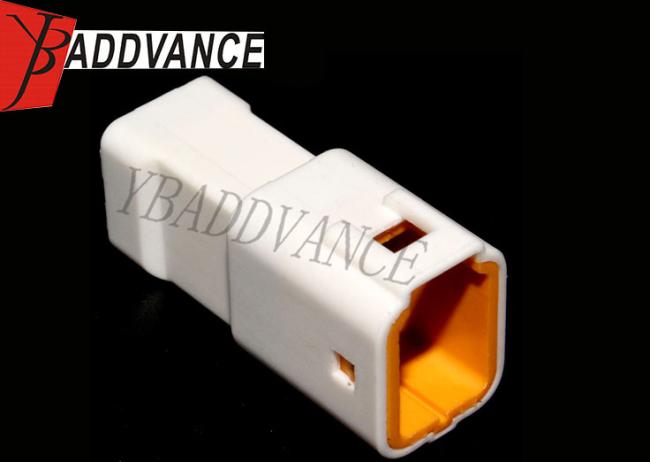

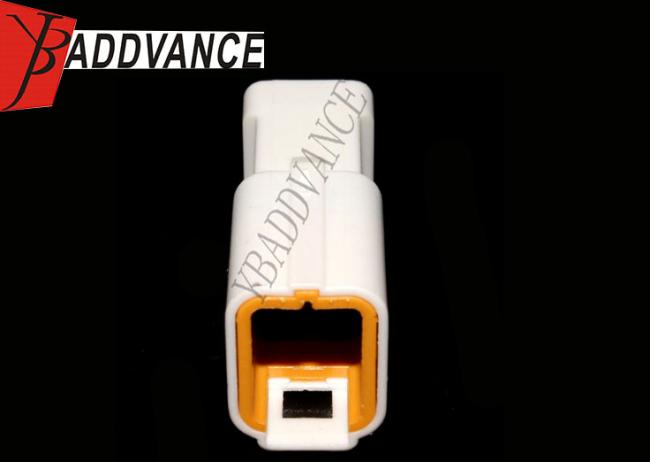

Product Picture Details
