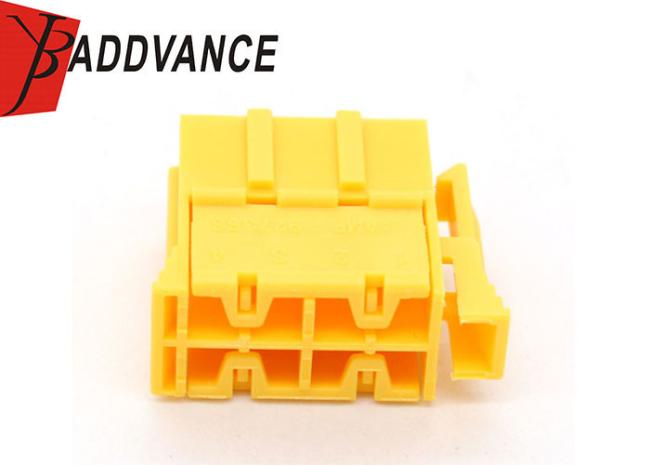

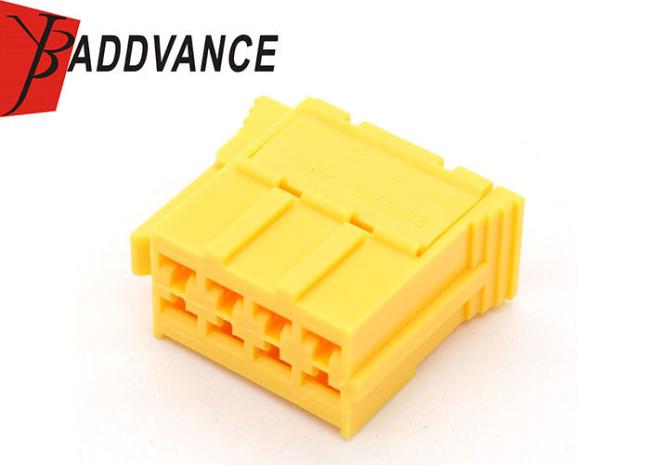

927366-1 8 Pin Female Tyco AMP Connectors Junior Power Timer Connector
Price:
negotiation
MOQ:
100 UNITS
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
927366-1 8 Pin Female AMP Tyco Junior Power Timer Series Connector
Specification
| Gender | Female |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-20AWG |
| Way | 8 Way |
| Operating Temperature range | -40~120 |
| P/N | 927366-1 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| Product Name | 8 Pin Female AMP Tyco Junior Power Timer Series Connector |
| MOQ | 100 units/lot |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Color | Yellow |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Sealed/Unsealed | Sealed |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Description
927366-1 8 Pin Female AMP Tyco Junior Power Timer Series Connector
This part come with the following types:
Connector: 1 Way TE Connectivity Circular Power Connector
Physical
Color :Yellow
Housing Material :Polyamide
Mount Cable, Free Hanging
Technical
Circuit Application Signal
Connector Type Plug, Tab
Gender Male
Hybrid Connector No
Number of Contacts 8
Number of Rows 2
Orientation Straight
Packaging Bulk
Polarized Yes
Serviceable No
Termination Crimp
Dimensions
Height 23 mm
Length 28.8036 mm
Mating Tab Width 2.794 mm
Pitch 5.08 mm
Row Spacing 5.08 mm
Width 13.7922 mm
Application:For auto
