Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck
Dongfeng Tianjin 140HP 5-7tons Flatbed Wrecker Truck 4X2 Towing and Recovery Truck
Product Description
1) 5-7Tons Wrecker Truck for Towing Broken Cars or Equipments.
2) Dongfeng Brand Chassis for Euro 2 / Euro 3 / Euro 4 / Euro 5 Emission
3) Spare parts of 5-7tons wrecker tow truck:
- Italy brand multi-way valve and balance valve;
- Gernamy Roxroth technology hydraulic cylinder and joint;
- International Brand Sealing elements;
- Strengthed Checked platform.
Specification
| Classification | Item | Unit | Parameter | ||
| Vehicle | Vehicle model | Dongfeng flatbed wrecker truck | |||
| Overall dimensions | mm | 7680,8680×2480×2700 | |||
| Tablet Size | 6400×2480 | ||||
| GVW | kg | 10000 | |||
| Curb weight | 6680 | ||||
| Traction system | 4×2 | ||||
| Transmission | 6-speed with over drive | ||||
| Max speed | km/h | 90 | |||
| Chassis | Chassis model | DFH1100B | |||
| Number of springs | 8/9+7 | ||||
| Wheel base | mm | 4,500 | |||
| Tire specification | 8.25R16 | ||||
| Number of tires | 6+1 spare | ||||
| F/R track base | mm | 1800/1800 | |||
| Engine | Engine model | EQH140-52 | |||
| Manufacturer | Dongfeng Commercial Vehicle CO.,LTD | ||||
| Engine horse power | hp | 140 | |||
| Displacement | ml | 4752 | |||
| Emission standard | Euro 2-5 | ||||
| Lift function | |||||
| Rated lift quality | 6000 kg | Corbel telescopic stroke | 1200 mm | ||
| Max effective length | 1300 mm | Max tractor speed | 40 km/h | ||
| Tablet Agency | |||||
| Tablet Size(LxW) | 6400×2480mm | Min inclination angle | 10° | ||
| working stroke | 2700 mm | Max load mass | 5000 kg | ||
| Winch parameters | |||||
| Number | 1 | Rated traction mass | 5000 kg | ||
| Rope length | 25 m | Strand speed | 8 m / min | ||

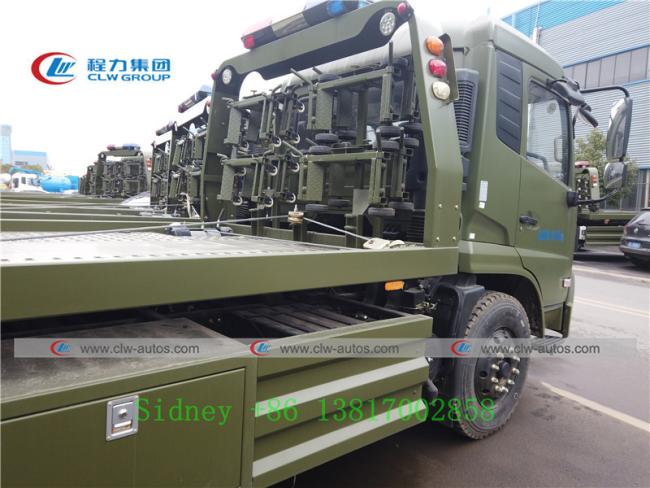

Reference photos
Structure drawing
| Item No. | Name |
| 1 | chassis |
| 2 | Warning lamp |
| 3 | Single lamp(white-front clearance lamp;red-rear clearance lamp |
| 4 | Winch and steel rope |
| 5 | Loading plate |
| 6 | Side signal lamp |
| 7 | Chain hook |
| 8 | Wheel lift |
| 9 | “L” bracket |
| 10 | Operation and hydraulic system |
| 11 | Auxiliary wheel |
| 12 | Side guard rail |
| 13 | Tool box and accessories |
| 14 | PTO and oil pump |
| 15 | Witch and operation handle of PTO |
Factory overview
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of wrecker trucks I can order from your company?
A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
