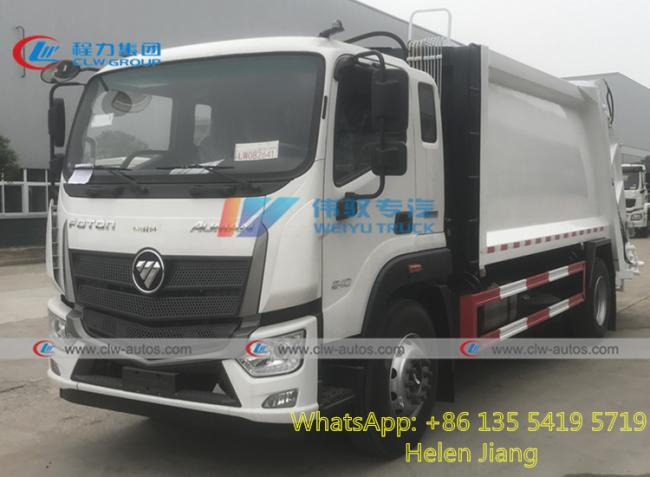

FOTON AUMAN 6 Wheeler 12M3 Garbage Compactor Truck
FOTON AUMAN 6 Wheels Cummins Engine 12M3 12CBM Compressed Garbage Compactor Truck
Product Description:
1. foton Auman chassis with weichai engine
2. compactor garbage truck capacity 8-12 cubic meters
3. ISO 3C certification
4. one year warranty
Detailed Specification for FOTON AUMAN truck chassis with Cummins Engine:
| Cabin | Left rudder/half row | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 8325×2462×2750 |
| Wheel base(mm) | 4800 | |
| Weight data | Curb weight(kg) | 4770 |
| Gross vehicle weight(kg) | 22000 | |
| Persons in cab (persons) | 2 | |
| Engine | Model | ISB220 40 |
| Emissions standards | EURO-IV | |
| Displacement(L) | 5.9 | |
| Rated Power | 162 | |
| Max torque | 800 | |
| Gearbox | Model | 8JS105TA |
| Clutch | Type | Single dry diaphragm spring |
| Front axle | Type | 5.5.T |
| Rear axle | Type/Mainreducetion ratio | 10T/4.875 |
| Suspension | Front suspension/Leaf spring number | Non-independent suspension longitudinal plate spring /10 |
| Rear suspension/Leaf spring number | Non-independent suspension longitudinal plate spring /10+8 | |
| Brake system | Service brake | Drum-type pneumatic brake |
| Parking brake | Barely able to brake | |
| Basic equipment | Hydraulic turn-over/cruising manual air conditioning/radial tire with inner tube 10.00R20/ manual door and window and rearview mirror/front + rear stabilizer bar /MP3 / power steering/knit shock absorber seat (air bag) | |
Upper equipment for FOTON AUMAN Garbage Compactor truck:
| Technical Parameters | Effective volume of trash bin | 10-15m³ |
| Filler volume | 1.5m³ | |
| Rated pressure of hydraulic system | 19(Mpa) | |
| Loader working time | ≤25(mm) | |
| Trash dumping time | ≤40(s) | |
| Filler lifting time | ≤12(s) | |
| Wastewater tank volume | ≥300(L) | |
| Manipulator flip quality | ≥600(Kg) | |
| Back flip form | Hanging bucket | |
| Top material (Curved box) |
Front box | 5mm bottom plate, 4mm side plate, 3mm top plate, Q345 steel plate |
| Dozer | Q345B steel plate | |
| Stuffer | Q345B steel plate | |
| Scraper skateboard assembly | Q345B steel plate | |
| Rear flip device | Q345B steel plate and profile | |
| Subframe material | Made of Q345 manganese plate | |
| Hydraulic system | Cylinder | Foshan naval power |
| Oil pump | Hefei Changyuan | |
| Multi-way valve | Hefei Changyuan | |
| Process requirements | Corrosion inside the tank | Industrial grade anti-corrosion |
| Welding and spraying requirements | Execute in accordance with "Fukuda Overseas Compression Garbage Truck Top Installation Specification" | |
| Glue requirements | The tank body, mudguard, sub-frame welded joints and side lights need to be treated with sealant |
More pictures for FOTON AUMAN 6 Wheels Cummins Engine 12M3 12CBM Compressed Garbage Compactor Truck:
Porducts details and drawings:
Other Types of Garbage trucks:
Warranty:
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
