High-quality Compatible HRS 4/6/7/10/12-Pin Aviation Connector For Industrial Camera Power/Trigger Cable
High-quality Compatible HRS 4/6/7/10/12-Pin Aviation Connector For Industrial Camera Power/Trigger Cable
Product Description

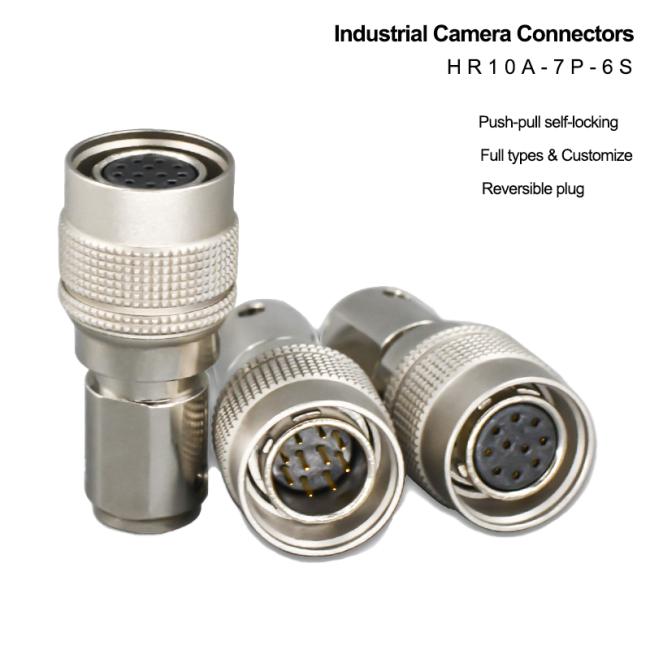

This is a high-precision, push-pull self-locking circular connector series designed specifically for industrial cameras and machine vision systems. It features a compact metal housing with reliable push-pull quick-release locking mechanism, making it easy to connect and disconnect while ensuring secure mating under vibration. Available in 4-pin, 6-pin, 7-pin, 10-pin, and 12-pin configurations, it is widely used for power supply, trigger signals, GPIO, and data transmission between industrial cameras (Basler, Cognex, Sony, AVT, JAI, etc.) and controllers or cables.
Key Features
- Full Compatibility: 100% compatible with Hirose HR10 series(compatible with Basler, FLIR, Sony brands).
- Secure Locking: High-reliability push-pull self-locking mechanism.
- Durability: Gold-plated contacts for 1000+ mating cycles.
- Compact Design: Ideal for high-density space-constrained applications.
Technical Parameters
| Project Content | Specification |

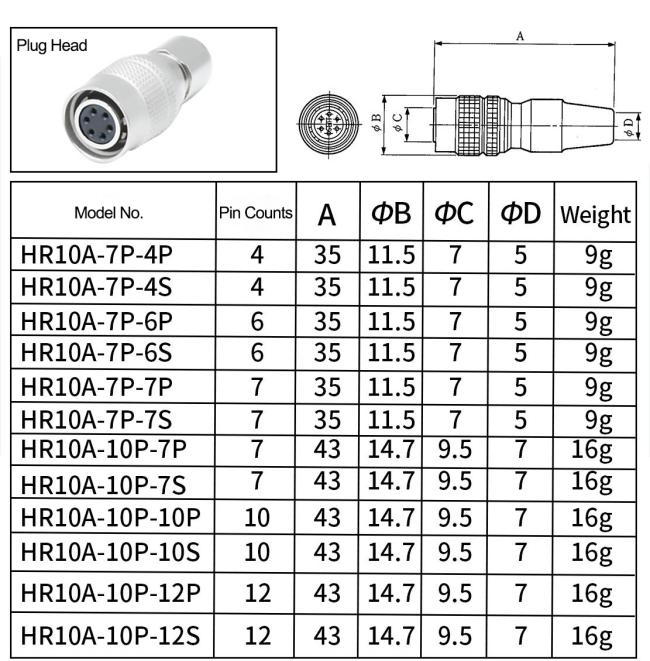

| Pin Count | 4 / 6 / 7 / 10 / 12 pins |
| Operating Temperature Range | -25℃ ~ +85℃ |
| Rated Voltage | 30V DC |

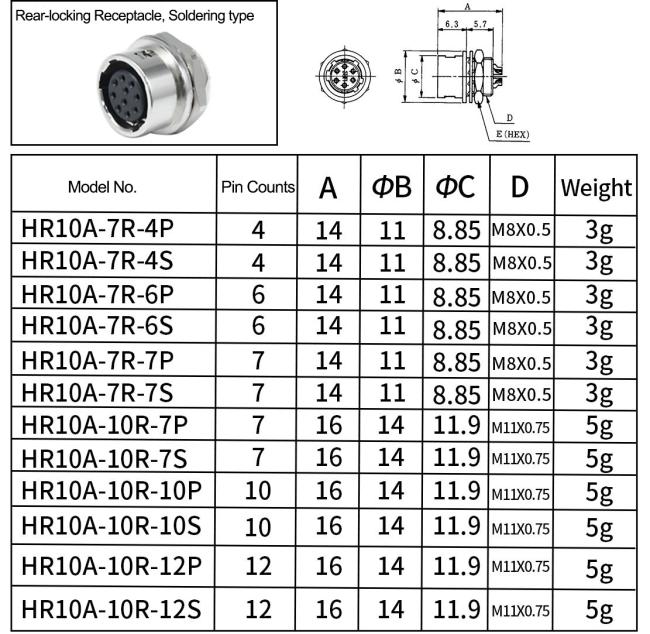

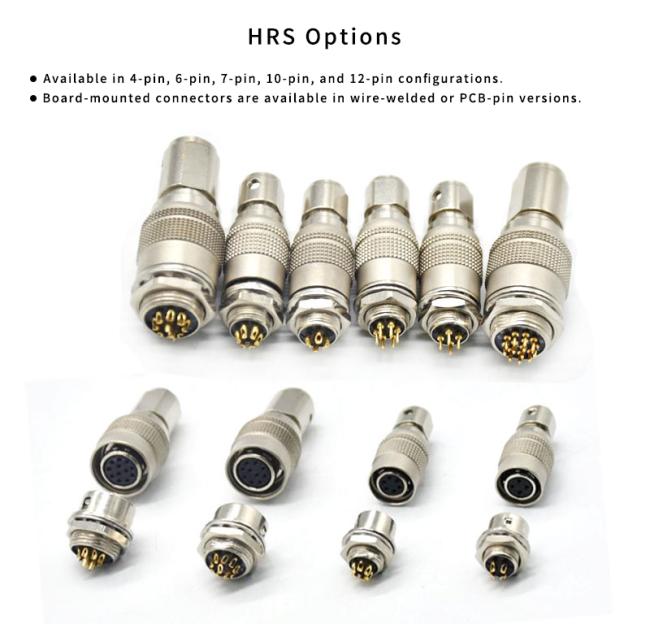

| Termination Style / Method | PCB Soldering / Wire Soldering |
| Rated Current | 2A (3A Max) |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | 3 mΩ |
| Ingress Protection Rating | IP54 |
| Mating Durability | >1000 mating cycles |
| Salt Spray Resistance | 48 hours |
| Material | Housing: PA66; Contacts: Brass with Nickel Plating |

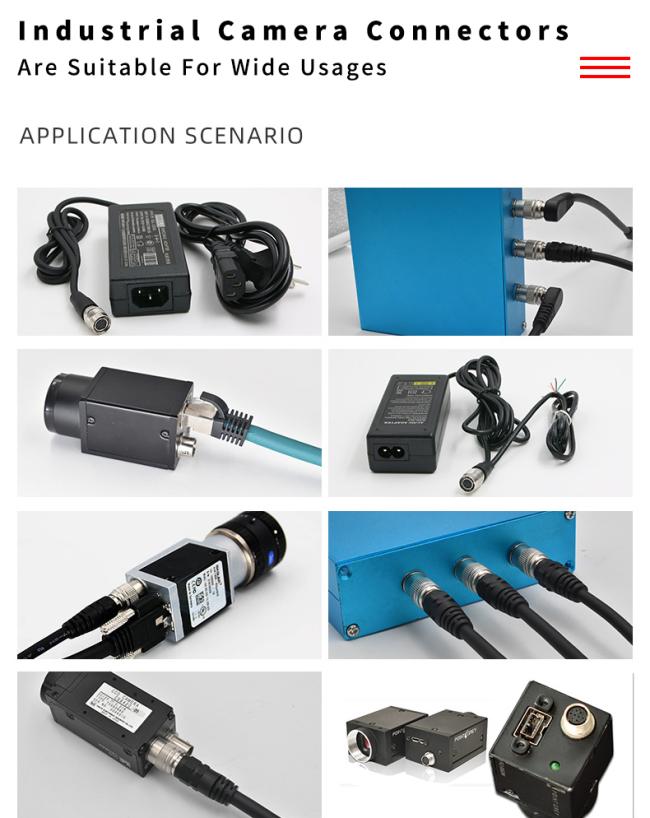

Application Scenarios
- Machine vision inspection systems on production lines (e.g., defect detection, measurement).
- Robotics and automation for part picking, alignment, or quality control.
- Industrial cameras in factory automation, semiconductor, automotive, or pharmaceutical manufacturing.
- Triggering external sensors (photoelectric, proximity) to synchronize camera captures.
- Integration with PLCs, GigE Vision, or Camera Link setups.
FAQ:

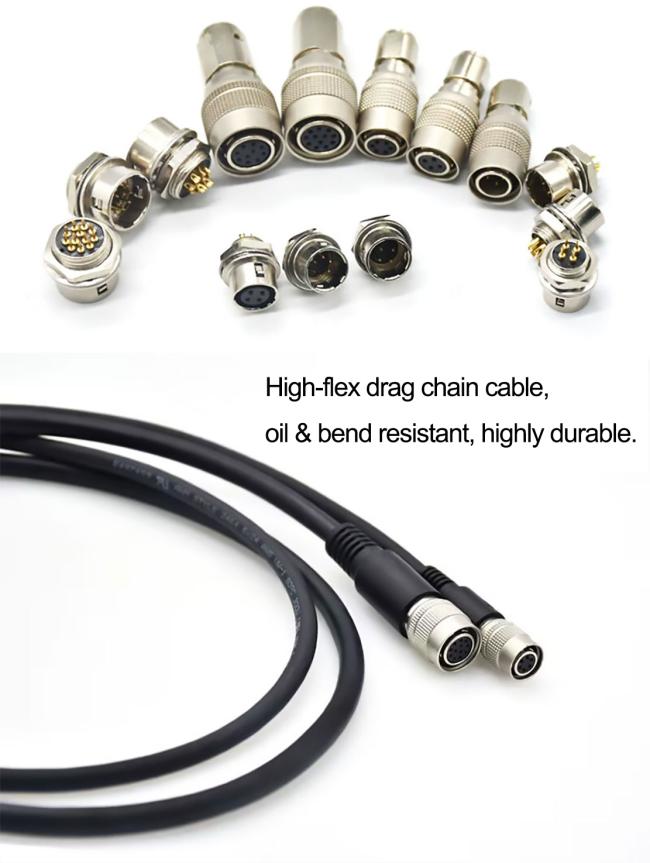

Q: What is the main purpose of this cable?
A: It connects industrial cameras to trigger sensors or controllers for synchronized image acquisition.
Q: Is the cable length customizable?
A: Yes, custom lengths and pin assignments are available, contact us for details.
Q: Is it compatible with Basler or Sony industrial cameras?
A: Yes, commonly used with HR series style or similar camera interfaces for power/trigger signals.
Q: What is the difference between AISG and SMH200 connectors?
A: AISG is a robust circular connector for reliable field connections; SMH200 is a compact 2.0mm pitch board connector.
Q: Does it support waterproof applications?
A: Many variants are designed with IP-rated protection for harsh industrial environments—confirm with the specific listing.
Q: What is the minimum order quantity (MOQ)?
A: Typically 100pcs or customized from 1k pcs for trial orders.
