Offshore Hydraulic Telescopic Boom Crane IP56 Class 7t@10m
7t@10m Offshore Hydraulic Telescopic Boom Crane, IP56 Crane For Sale
Product description
OUCO 7T@10M telescopic boom crane adopts hydraulic cylinder to luff and rotates 360 degrees. The extension part of the boom consists of a telescopic boom and a main boom, and the length can be retracted when not in use.
More flexible work can be done during lifting, with a larger operating radius, compact design, and space saving.
Product Feature
OUCO has its own factory. All design and manufacturing procedures are completed by us at the manufacturing headquarters. We can provide you with the production progress on schedule. Welcome to audit the factory.
The advantages of telescopic cranes are light weight, easy operation, less damage and short delivery time.
This offshore crane can withstand harsh environmental conditions and is less prone to damage and erosion.
Telescopic boom cranes are ideal for lifting work platforms and high objects.
The boom adopts octagon structure, which is stable and reliable.
Technical parameters
| SWL | 7t10m |
| Max Working radius | 10m |
| Min Working radius | 2m |
| Luffing time | 45s |
| Hoisting speed | 18m/min |
| Motor | 30KW |
| Working type | S1 |
| Hoisting height | 20m |
| Slewing speed | 0.8rpm |
| Power supply | 380V,50Hz, 3ph |
| Slewing Angle | 360° |
| Protection Class | IP56 |

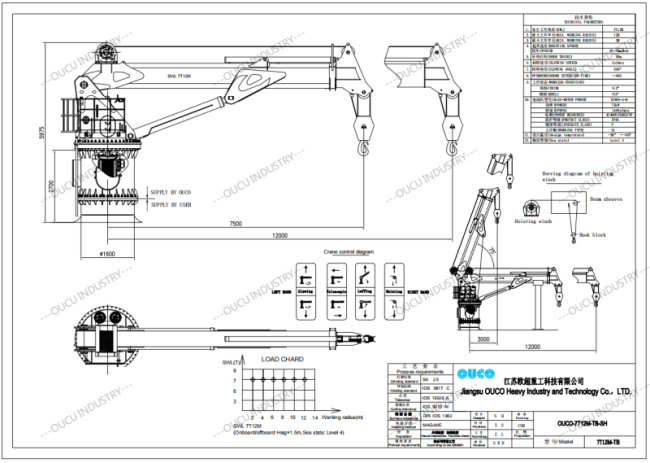

GA Drawing

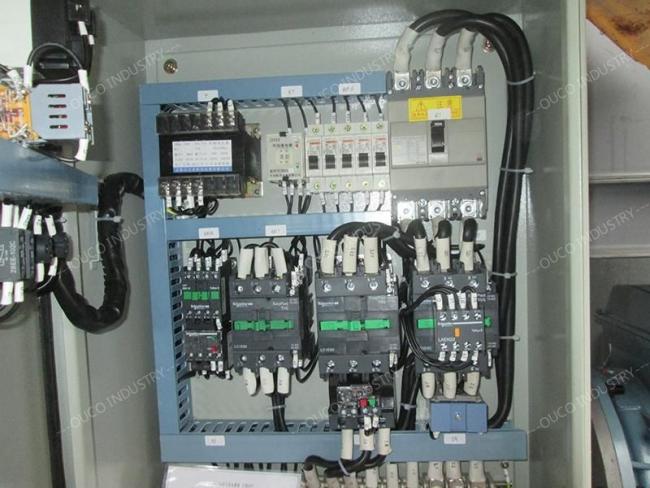

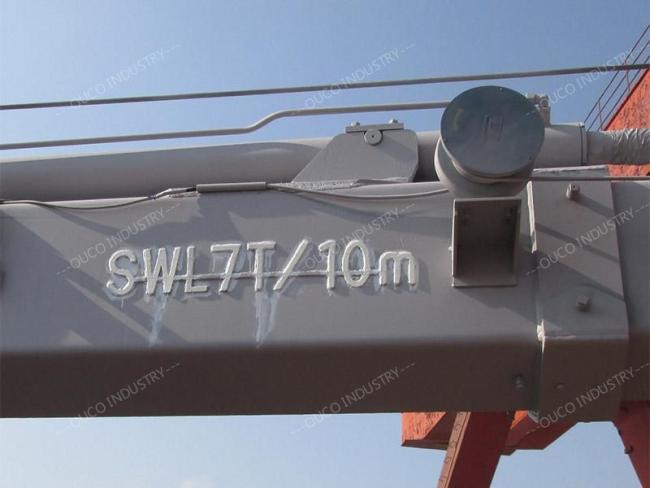

Detail Picture

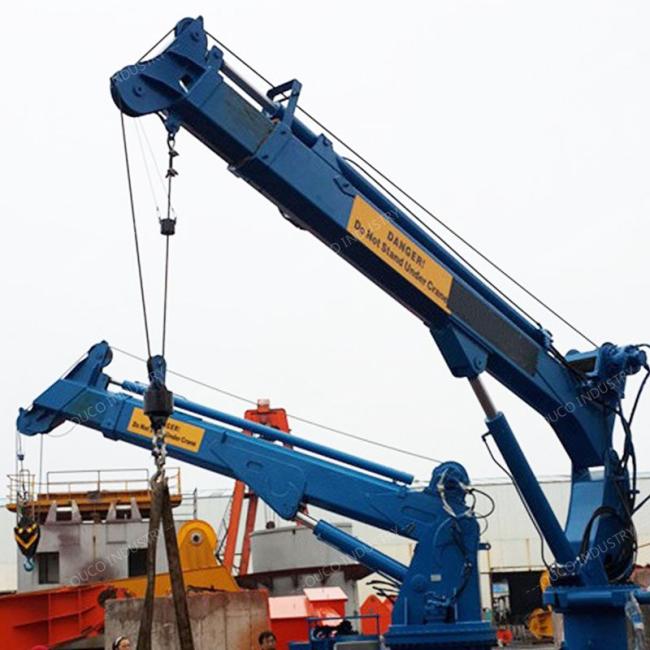

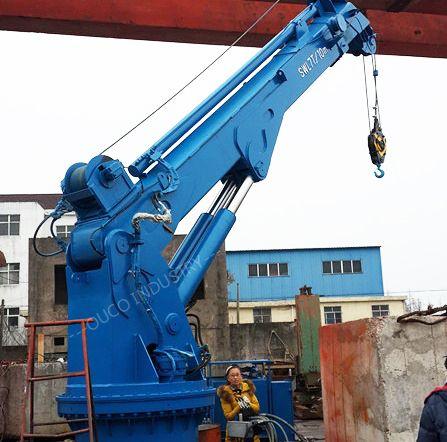

Customer Bulid
OUCO factory specializes in the crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing | container |
| Delivery |
Standard product: 1month Customized product: 2 months Certified products: 3-4 months |
custom equipment
lower temperature package up to -40 C*.
certification for personal lifting.
wireless remote control
operator cabin with AC and heating.
ATEX package and certification.
man riding winch.
centralized grease system.
multiple setting of load limiting system.
automatic overload protection system.
warning and working lights.
load indicator system.
other upon request
Standard equipment
360 C* continuous rotation.
-10 C*----+45 C* working temperature.
certified A36 & S690 steel structure.
pedestal ready for mounting or weld to vessel main structure .
stainless steel grease nipples.
precise step less speed control.
simultaneous operations of 2 or more functions.
emergency hydraulic stop device.
visual and audible warning alarm
Our factory
With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience in offshore business, which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmentally-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working temperatures of - 40C accordingly.
Workshop
Our company has a modern production factory and experienced production workers.Modern operation technology and strict supervision system guarantee the quality of products.
For more details, please feel free to contact us.
FAQ
1. Q: Can this type work in hazardous environments?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Q: Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. Q: How can we install the crane?
A: Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Q: Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
