Low Temperature Through Hole Slip Ring with Power and Ethernet Signal for Industry Robotic
ECN082-02P2-04S-01EM is CENO through hole slip ring with inner bore 82mm, combine Electric Power, RS422 and Ethernet Signal, equipped to the machine working in low temperature environment from -40°C to +65°C. CENO Ethernet slip ring is an advanced communication technology widely utilized in various cabinets. It enables high-speed, stable, and reliable data transmission, thereby meeting the ever-growing demands of modern communication. More information please contact us.
|
ECN082-02P2-04S-01EM Specification |
|
|
Current & Circuits |
2 * 10A; 1 * RS422; 1 * Ethernet Signal |
|
Rating Voltage |
0 ~ 220 VAC/VDC |
|
Dielectric strength |
≥1000VAC@50Hz; ≥300VAC@50Hz |
|
Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@300VDC |
|
Contact resistance wave |
≤ 30mΩ |
|
Working temperature |
-40°C~+65°C |
|
Working humidity |
60 %RH |
|
IP protection grade |
IP51 |
|
Operating speed |
0~100rpm |
|

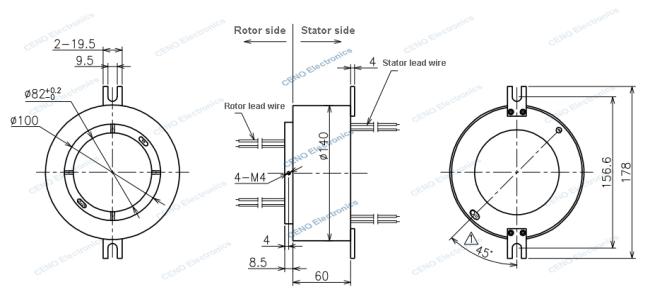

Outer diameter |
Ø140mm |
|
Contact material |
Precious Metal; Gold to Gold |
|
Housing material |
Aluminium Alloy |
- Flange design for easy installation
- Circuits 1 - 300 circuits are optional
- Can integrate signals as RF, fiber optics, HDMI, USB, Hydraulic/Pneumatic
- Easy installation & free maintenance
- Automatic machine
- Automotive Test Bench
- Turntable testing machine
- Industry robotic
- Medical Equipment
- Circuit, Voltage, Current
- Wire size, length & connector
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
CENO is a technological company in the slip ring field engaged in research and development, manufacturing, and sales. We have advanced equipment and high precision test instruments to ensure product quality and reliable performance. Our facility covers 3000 square meters and is located in Shenzhen, China.
ISO9001, CE, RoHS, UL, Explosion-proof
Our engineering team members have more than 10 years of experience in slip ring technology. Operators working on critical procedures are all qualified through internal training.
- 24 hours, 7 days consultant service
- Mass and customized production
- Solution offering for 360° rotation systems
Welcome to consult us with your requests for any 360° rotation system. We will provide one-stop service and respond to your inquiries promptly.
