Radar Antennas Rotary Union Low Working Temperature 300RPM Rotaion Speed

This is CENO electronics standard hollow shaft series slip ring,inner diameter 35mm ,the lowest working temperature -40℃, it is widely used in radar antennas ,electrical test equipment, rotary table, medical equipment,exhibition/display equipment, manufacturing and processing control equipment and so on.Compact size ,light weight,easy to install and maintain.stable performance and high reliability.

Optional

• Through hole size
• Circuit number
• Current rating
• IP protection grade

Features

• Low torque, low noise, wide range of applications
• Center hole can Integrate hydraulic,pneumatic,fiber optical,RF rotary joint
• Unlimited rotation fully meets image and data transmission

Applications

• Radar antenna
• Exhibition or display equipment
• Medical equipment

Specification

ECN035-06P2-05P1-12S		Picture
Current	6*10A,5*5A,12*signal
Voltage	380VAC
Electrical noise	≤70mΩ@50rpm
Dielectric strength	≥1000V@50Hz
Insulation resistance	500MΩ@500VDC
Operating speed	0-300 rpm
Contact material	precious metals
Operating temperature	-40~+80℃
Through bore size	35mm
IP protection grade	IP51

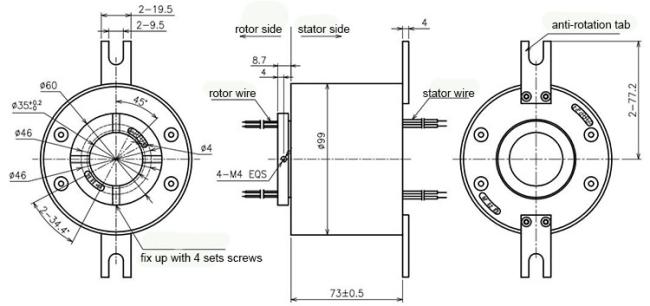

Outline Drawing


Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
