ABS Material Case Gel Cell Deep Cycle Battery , 2V800Ah Pure Gel Battery Long Lifetime
2V800Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery
Product Features
The OPzV series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using diecasted positive grid and patented active material formula, it exceeds the DIN standard values and offer 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions. This series is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.
Positive plate :Tubular plate with die cast Pb-Ca alloy grid
Negative plate : Balanced Pb-Ca grid for improved recombination efficiency
Separator : leaf shape polymer separator
Electrolyte : Dilute high purity sulphuric acid with fumed Silica gel
Battery container and cover : ABS
Pillar seal: 100% factory tested, proven two layers epoxy resin seal
Relief valve : Complete with integrated flame arrestor
Specifications
| Nominal Voltage (V) | 2 |
| Designed Floating Life (20oC) | 20+ Years |
| Nominal Capacity (20oC) | 800 Ah @ C10 (to 1.80Vpc) |
| Demensions | L191mm×W210mm×H681mm |
| Approx. Weight | 60 kg (132.3 lbs) |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Internal Resistance | Approx. 0.46mOhm (fully charged @ 20°C) |
| Max. Charge Current | 160 A |
| Max. Discharge Current (5S) | 2000 A |
| Short Circuit Current | 4300 A |
| Self Discharge | Approx. 2% per month @ 20°C |
Ambient Temperature | Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C |
| Float Charge Voltage(20 - 25oC) | 2.25 - 2.29V (-3mV / oC/ cell) |
| Equalize Charge Voltage(20 - 25oC) | 2.35 - 2.40V @25oC |
| Container Material | ABS(UL94-V0 optional) |
DIMENSIONS
BATTERY DISCHARGE TABLE PARAMETERS FOR SOLAR&WIND APPLICATIONS

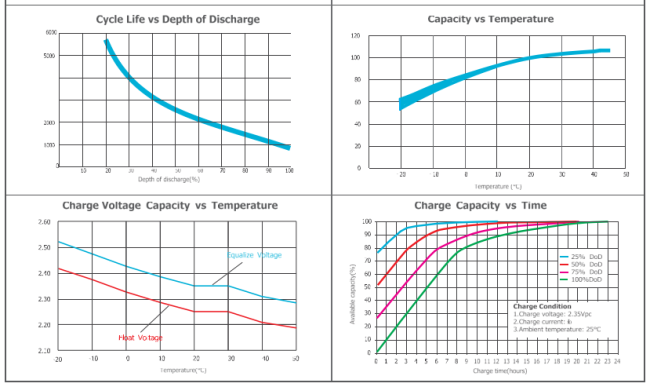

CHARACTERISTICS
Application
Telecom outdoor applications, renewable energy systems, other harsh environment applications.
Advantages
1. 20+ years design life at floating condition.
2. Wide operating temperature range from -40C to 60C.
3. Tubular positive plate with prolonged cycle life.
4. Nano Silica gel electrolyte.
5. Lead Calcium die cast grid with improved corrosion resistance capability.
6. Excellent deep discharge recovery capability.
