BRA-44 Gain 12 dBi Linear Polarization UHF RFID Antenna to UHF band vehicle management

core advantages

1) The core technology R&D team comes from top universities and antenna companies in China.

2) R&D team has rich experience in UHF RFID antenna and label development

3) Advanced and efficient R&D platform, which can quickly respond to customized requirements and has a short development cycle

4) Successfully developed a variety of patented products including antennas, tags, access control and other integrated devices

Product Function and Features

1. The antenna has high gain and narrow beam characteristics, and is a general antenna for UHF RFID applications.
2. The antenna has a reading distance of 15-20 meters
3, the antenna is suitable for long-distance applications, using linear polarization design
4. The antenna has superior mechanical properties, waterproof rating up to IP65, and the housing is reinforced for a variety of harsh environments.
5. BRA-44 antenna can be conveniently applied to UHF band vehicle management, asset management and other applications.

Performance Specifications

The main test capabilities

Antenna gain

Antenna directivity

Beamwidth

Antenna efficiency

Radiated power

Label sensitivity

Label performance

installation

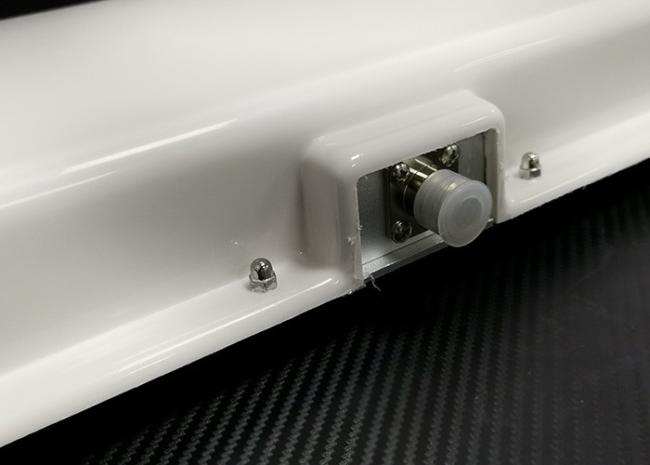

The BRA-44 antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.

The antenna mount is an option and the customer can choose as needed.
