Stable Performance Long Plunger Oilfield Sucker Rod Pump For Petroleum Production
Stable Performance Long Plunger Oilfield Sucker Rod Pump For Petroleum Production
Product description
The long plunger sand control pump ,due to its traveling valve cage always exposed to the pump barrel, so the oil flow section is not limited by pump barrel diameter, so the oil resistance smaller than conventional pump. Plunger downward drag is small, high pump efficiency, so it is suitable for heavy oil.
The long plunger sand control pump have independent grit channel, avoids the heavy sand out again.
Technical parameters
| Specification (mm) |
Barrel Length (mm) | Plunger Length (mm) | Max. Stroke (m) | Max.Outside Diameter (mm) |
connected Rod (in) |
| φ38 | 1500 | 3.3-6.9 | 5.1 | φ107 | 3/4 |
| φ44 | 1500 | 3.3-6.9 | 5.1 | φ107 | 3/4 |
Features
High pump efficiency, stable performance.
Multilayer sand control device, sand control effect is good.
Equipped with independent grit channel, reduce work times.
Suitable for sand and heavy oil well conditions.

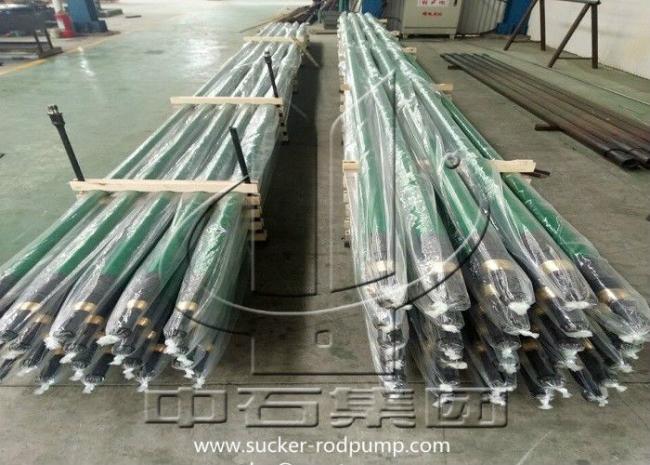

Pictures
