Vegetables Blanching Oven SUS316L Spiral Mesh Belt
Price:
Negotiable
MOQ:
3 meters
Delivery Time:
10 days after receiving your payment
Brand:
Reking
Product Description
Vegetables Blanching Oven SUS316L Spiral Mesh Belt
Spiral Mesh Belt Descripition
- Spiral Mesh Belt is also called the trapezoidal mesh belt, this belt is usually gear transmission belt, has the advantages of good air permeability, tensile force uniform, fine workmanship, this belt has good stability, flexible rolling, high temperature resistance, pressure resistance, corrosion resistance, long service life.
- Spiral Mesh Belt is constructed of cross rods, with collapsing links each side. For improved product support, the rods may be overlaid with a spiral mesh.
- Spiral Mesh Belt can also be supplied with a link in the centre of the belt width to decrease its turning radii, as well as side guards to prevent product spillage.
Spiral Mesh Belt Data Sheet
| Item Name | Specifcation | Max | Min | Remark |
|
Spiral mesh belt |
Width | 4.0m | 0.2m | Include side chain width |
| Length | 50m | 1.0m | ||
| Wire diameter | 5.0mm | 0.5mm | Usual 1.0 - 3.0mm | |
| Spiral pitch | 20mm | 3.0mm | ||
| Cross wire pitch | 50mm | 5.0mm | ||
| Support rod | 12.0mm | 4.0mm | Common 6.0 and 8.0mm | |
| Material grade |
Iron steel Q195 or 235 Ss 201, 304, 316L, 430 |
|||
| Driven type | Sprockets and chains | |||

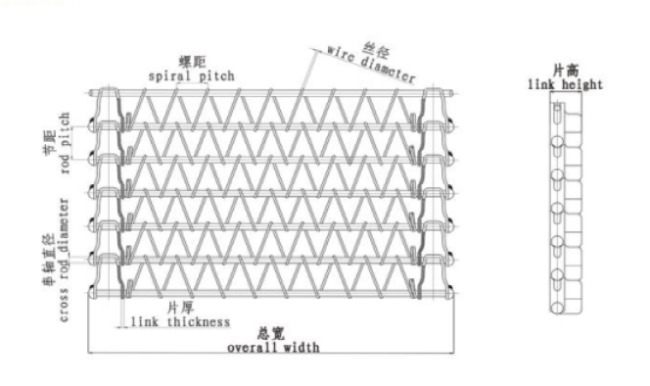

Spiral Woven Mesh Belt Drawings
Please send us the size we need, so that i can give you our best offer.
Spiral Mesh Belt Quality Control
Spiral Mesh Belt Packaging
Spiral Mesh Belt Application
