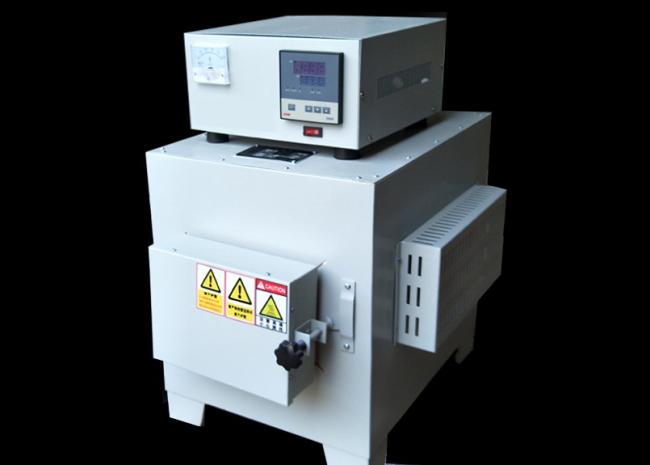

Refractory Brick Industrial Muffle Furnace Electric Heating 1100C
Cheap Refractory Brick Industrial Muffle Furnace 1100C
Introduction of industrial muffle furnace:
Industrial muffle furnace is vailable for industrial and mining enterprises, scientific research units, such as laboratory for chemical analysis, physical testing and general small steel heat treatment.
SUPER Industrial muffle furnace advantage :
* Easy to installation.
* Electric furnace adopts domestic advanced technology
* Rectangular monolithic lining made of silicon carbide refractory material
* Made of high quality steel plate after flanging welding pull, control box with furnace body as a whole structure
* Iron chromium aluminum wire wound spiral heating element of wear on the inside lining, bottom, left and right wire slot
* Furnace is sealed structure, electric oven brick, brick oven door uses lightweight.
Technical parameter of 1200C high temperature industrial muffle furnace:
| Items | Specification |
| Product | SP-1200B-16L chamber electric industrial muffle furnace |
| Useful chamber size | 120*200*300mm(125L W * H* D) |
| Max Temp | 1200℃ ( < 3 hrs) |
| Working Temp | 0-1100℃ (adjustable, for long time ) |
| Temp accuracy | ±1 ℃ |
| Heating rate | 1-20℃/min (adjustable,advise less than 15℃/min) |
| Heating Element | Resistance wire |
| Furnace liner | Light durable ceramic fiber plate |
| Rated Power: | 15KW |
| Furnace shell | Double shells with fan cooling |
| Temp. measurement | By K type thermocouple |
| Temp. Control | 30 segments programmable and PID auto control |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Furnace surface temperature | ≤60℃ |
| Working Voltage | AC,1-phase ,220V ,50/ 60HZ |
| Freebies | 1.oven glove 1 set ; 2. Pliers 1pc |
Heat treatment indutrial muffle furnace features:
* Dual ceramic inner chamber and hollow heat insulation ensure that the temperature can go up quickly. Industrial muffle furnace heating rate is about 20℃/min.
* Automatic parallel pressure door technology ensures the inner chamber temperature evenness and without leakage under the high temperature.
* PID micro digital screen controller,with functions of timing(0~9999min), fixing temperature, over-temperature alarming and auto-stop.
*Indutrial muffle furnace safety protection measures: thermocouple failure, cut off power automatically when open the door and over temperature protection to avoid accidents occurring.
* Double-shell hollow thermal insulation and double ventilation duct with advantages of excellent ventilation,the shell not hot and the furnace internal cool quickly.
