1540~1565nm 8 output 21 dBm High Power EDFA SC/APC With SNMP For HFC Network

Advantages

• With RF on-line test
• With original new lumentum laser
• Above 96% conversion efficiency,low power consumpiton
• With pluggable powers,one key push-pull design,easy operation.
• With intelligent cooling system,3 fans which could turn on/off by front panel

Features

• Front panel LCD display key working parameter precisely.
• With WDM,RJ45 network interface,19”2U standard frame.
• 4-128 output,output powr 27-40dBm,adjust power range:-4.5 to 0.5dBm.
• Double redundancy power design,work as backup,support shift automatically and hot plug.
• Adopt multiple mode high power pump laser and high quality imported erbium & yterbium fiber.

Application

Technical Specification

EDFA Type	1540~1565nm 8 output 21 dBm High Power EDFA SC/APC With SNMP For HFC Network

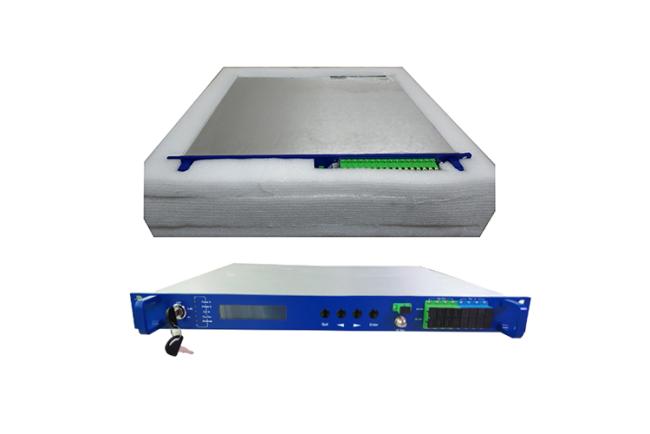

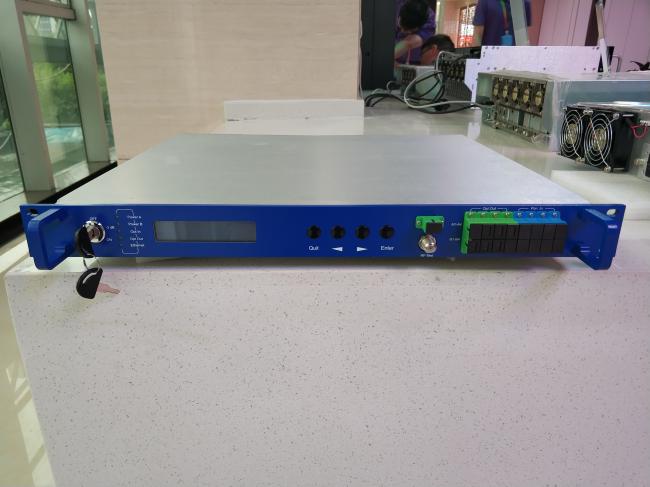

Front and Rear Panel
Item	Unit	Parameters
Wavelength	nm	1540~1565
Input optical power	dBm	-10~+10
Nominal input optical power	dBm	3
NRP (+3 dBm,@1550nM)	dB	≤4.5
Gain Flatness	dB	＜±0.3
Optical power output stability	dB	＜±0.1
Polarization sensitivity	dB	＜0.2
Polarization mode dispersion	PS	＜0.5
C/N	dB	>52
C/CTB	dB	>65
C/CSO	dB	>65
MER	dB	>36
BER(before decode)	dB	≤1.0E-8
Optical connector		SC/APC；SC/PC (LC/APC；LC/PC)
Pump working qty	N	1∽5
Saturated output power	dBm	Max total power 30~41
Power supply	Vac	95~265(detachable power)
Power Supply	Vac	-48(detachable power)optional
Working Temperature	℃	0~50

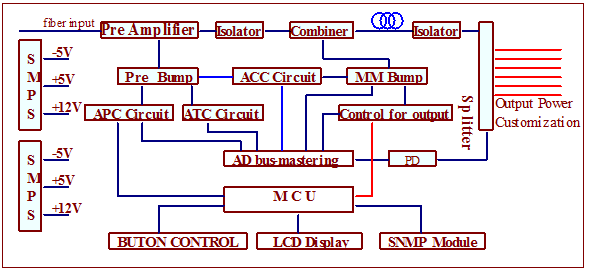

Principle Block Diagram
WDM Diagram
PON path with WDM
PON working wavelength	nm	1310/1490
PON port Insert Loss	dB	＜1
155 port insert loss	dB	＜0.5
Option
Front panel RF-TEST LEVEL	dBuV	75±5
Optical switch switch time	ms	＜10
Power consumption	W	≤50
Accessories
Power Line	2*1.2M
User Manual	1*Single sheet user manual
