Hisilicon Chipset 1 POTS FTTH ONT 1GE 3FE WiFi CATV GPON EPON Mode Adaptation
Hisilicon Chipset 1GE 3FE 1POTS WiFi CATV GPON EPON FTTH ONT ONU
Main Descriptions:
G/EPON two mode adaptation;
GPON- G.984/ G.983 code; EPON- 802.3-2005/CTC support G.711, G.722, G.729 and T.38 coding and encoding protocol;
Supporting VoIP, WiFi bgn or CATV(see detailed model function);
Supporting L2/L3 multicast forwarding, L2 bridge forwarding, L3 router forwarding and NAT/NAPT;
Supporting flexible traffic classification;
Supporting HQoS (Hiberarchy Quality of Service);
FTTH ONT Specifications:
| Item | Parameter | |
| Interface | PON Interface | 1 EPON optical interface Meet 1000BASE-PX20+ standard Symmetric 1.244Gbps upstream/downstream 2.488gGbit/s, SC single-mode fiber split ratio: 1:64 Transmission distance 20KM |
| User Interface | 3*10/100Mauto-negotiation;1*10/100/1000 Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
|
|
1 RF output Female F-Type Connector |
||
| Power Interface | 12V DC Power supply | |
| Performance Parameters |
PON Optical Parameter |
Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -2~4dBm Rx Sensitivity: -27dBm Saturation Optical Power: -3dBm Connector Type: SC/APC Optical Fiber: 9/125um single-mode fiber |
| Data Transmission Parameter |
PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet: 100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms |
|
| Business Capability |
Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support link detection |
|
| Network Management |
Management Mode |
Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through Telnet,TR069, Local management |
| Management Function |
Status monitor, Configuration management, Alarm management, Log management |
|
| Indicator | LED Indicator | PWR, SYS,PON, LAN1~LAN4, CATV,WIFI |
| Physical Features | Shell | Plastic casing |
| Power |
External 12V 1A AC/DC power supply adapter Power consumption: <5.5W |
|
| Dimension and Weight |
box Dimension:209mm(L) x 165mm(W) x 69mm (H) Item weight:0.4kg |
|
| Environmental Specifications |
Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing) |
|

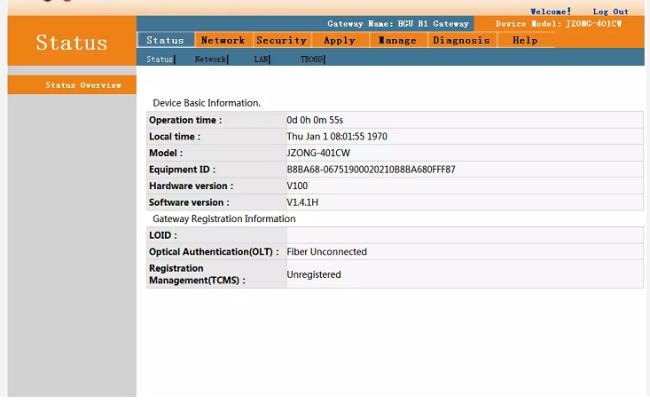

WEb interface:
