Indoor 4~10mW 1550nm CATV Optical Transmitter With Dual Power High Reliability

Price Negotiable

Price: Negotiable

MOQ: 1pcs

Delivery Time: 5 work days

Brand: JiZhong

Product Description

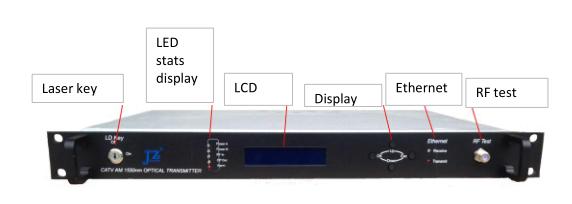

Indoor 4~10mW Direct Modulated CATV 1550nm Optical Transmitter With Dual Power

Product Overview:

1550nm CATV optical transmitter is improved better in power consumption,output accuracy and high reliability,it is mainly used in optical fiber Transmission of Television Image Signal,Digital Signal, Television ,Telephone,Voice Signal Data (or Compressed Data) Signal.

With all property technology data meeting international demands and pay attention to product cost,1550nm CATV optical transmitter is first choice of building small and medium size optical transmission network of CATV equipment.

Data sheet:

Item	Unit	Technical Parameters
Optical wavelength	nm	1550±10
Optical output power	dBm	3-10
Laser type		DFB laser
Connector type		FC/APC or SC/APC
Bandwidth	MHz	47-862(1000MHz customized)
RF input power	dBuV	75-85
Flatness	dB	±0.75
RF test port level	dBuV	-10
Input port isolation	dB	≥50
AGC accurate	dB	0.25
MGC adjustable range	dB	0~15
RF input impedance	Ω	75
Input return loss		≥16
CN		≥52
C/CTB		≥65
C/CSO		≥60
Supply voltage	V	AC90-265V& DC-30V~-72V
Consumption	W	24
Operating Temperature	℃	0 ~ +50
Max Relative Humidity	%	Max 95% no condensation
Net weight	kg	4.5
Size	mm	483x400x44
