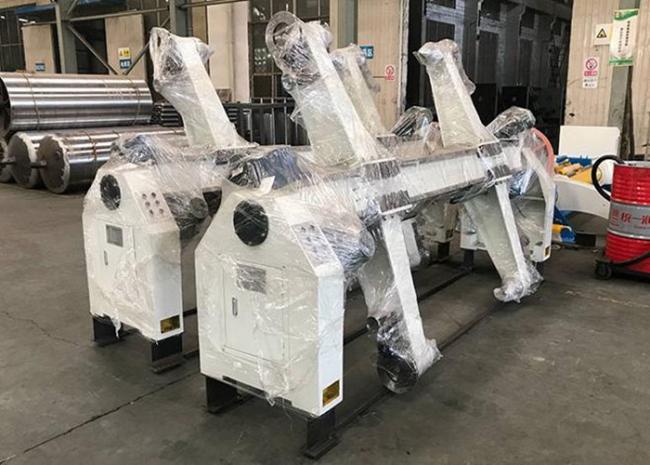

Electric Shaftless Mill Roll Stand For Corrugated Cardboard Production Line

Summarize

The machine is designed to lift the original paper and fix it in the air to provide the base paper for the production.

1. Use paper width: 2200mm (88 inches)
2. Largest clip original paper diameter: 1500mm (60 inches)
3. Minimum original paper diameter: [Phi] 300mm
4. The clip wall adopts cast iron curve structure, beautiful and generous, firm and stable.
5. The supporting shaft slide key and the supporting shaft body are welded together to ensure the strength and accuracy of the whole supporting shaft through welding, removing stress, numerical control processing.
6. The arms are lifted, clamped, and left and right are hydraulically controlled.
7. Pneumatic adjustment of tension control, using disc brake system.
8. All control valves, cylinders and pumps are imported from Taiwan.
9. The chuck is cast by 45# casting steel and hardened by medium frequency induction. The 3 inch /4 inch cylinder core is selected, and the expansion chuck is also available.

Detail

1. Backstands action mode:mechanical electric operation

2. The range of paper jams:maximum:2200mm minimum:600mm

3. The diameter of paper jams:maximum:φ1400mm minimum:φ400mm

4. Unilateral maximum load:maximum 2000Kg

5. Powered motor parameters:Paper jams motor 550W×4set 380V 50HZ,short(S2)working standard,lift motor 1.5Kw 380V 50HZ
