Df-60 Double Facer Corrugated Cardboard Production Line 440V

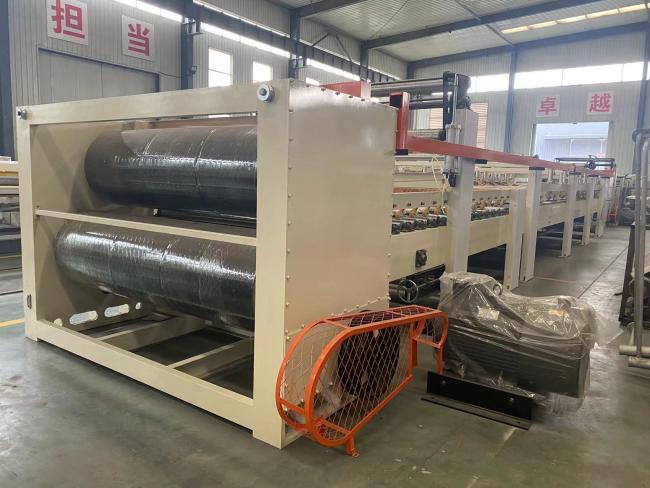

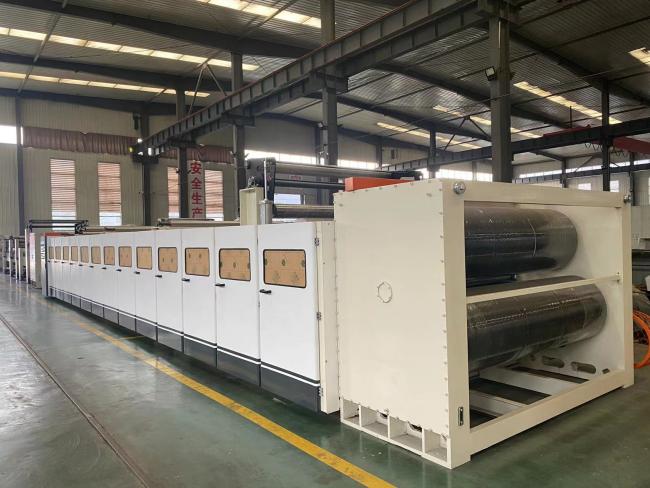

DF-60 Double Facer Corrugated Cardboard Production Line
Machine intruction:
Corrugated paper enter into the corrugated cardboard production line double facer hot parts with heating and molding after pasted glue, and become board after cooling
Technical parameter:
| Working Width | 2200mm |
| Steam Pressure | 0.8-1.3Mpa |
| Air Pressure | 0.6—0.9Mpa |
| Up Drive Roller | Φ637mm |
| Down Drive Roller | Φ637mm |
| Front Driven Belt Rroller | Φ321mm |
| Back Shaping Driven Belt Roller | Φ215mm |
| Belt Press Roller | Φ70mm |
| Shaping Holder Roller | Φ86mm |
|
Note: All the surfaces of the rollers are ground and then chromed plated |
|
Machine Function:
1. Hot Plates’ surfaces is ground and then chromed plated,width 600mm and 18pics,cooling parts 4m
2. Hot plates adopts the press shoes structure,it lifting adopt pneumatic structure
3. Heat conductive pipe of hot plates control the temperature segmented
4. The inside of the hot plate is partition isolation structure,making the steam flow in S-shaped direction, and the separation function of steam and water is obvious,then improves the steam usage efficiency
5. Up convey belt left and right correct by auto with both sides,Under belt adopt S type manual correct tension device
6. Up belt adopt double cylinder S type tension device,down belt manual tension device(small amount adjust)
7. Drive rollers’ surface is wrapped by rubber with middle height,to make sure the board output smoothly
