702 Grade 99.2% Seamless Zirconium Pipe Offshore Aquaculture
702 Grade Seamless Zirconium Tube/Pipe
The Zirconium Tube/Pipe & zirconium alloy pipe and tube refer to made to ASTM B523 or seamless and welded zirconium & zirconium alloy pipes made to ASTM B658. The same as Zr & Zr alloy bars & wires, there three grades available: Grade R60702: unalloyed zirconium, Grade R60704: zirconium-tin alloy, Grade R60705: zirconium-niobium alloy.
Specifications Of Zirconium Tube / Pipe
| Material | R60702 R60704 R60705 and other Zr alloy |
| Standard | ASTM B551 |
| Purity | 95%~99.5% |
| Color | Silver |
| Density | 6.1~6.5 g/cm3 |
| M.O.Q | 100lb (About 120ft of 1"OD tube) |
Chemical composition for Zirconium Tube/Pipe
| Grade | Zr+Hf | Hf | Fe+Cr | Sn | H | N | C | O | Nb |
| R60702 | 99.2% | <4.5% | <0.20% | - | <0.005% | <0.015% | <0.030% | <0.15% | - |
| R60704 | 97.5% | <4.5% | 0.2-0.4% | 1.0-2.0% | <0.005% | <0.015% | <0.030% | <0.16% | - |
| R60705 | 95.5% | <4.5% | <0.2% | - | <0.005% | <0.015% | <0.050% | <0.16% | 2.0-3.0% |
Applications Of Zirconium Tube / Pipe
Heat exchangers
* Chemical and biological reactors
* Condensers
* Various corrosive fluid transmission pipeline systems
* Offshore aquaculture
* Fuel rods in nuclear reactors
XINXIANG FANMETAL can offer and supply zirconium seamless and welded tubes and pipes strictly per regular specifications such as ASTM B658, ASTM B523 and ASTM B353 (for nuclear). We start quality control from preparing ingot melting by testing required chemistry. During rolling process, geometric and both outside & inside surface will be concerned and monitored in each step until annealed finished tubes are ready. The most important thing is, NDT such as Ultrasonic or Eddy Current must be implemented to prevent potential cracks, pores and any other minor imperfections. Other essential inspections such as flattening, flaring, hydraulic and gas leakage also will be proceeded in order to verify mechanical properties for finished tube
We also can supply zirconium sheet / plate, zirconium rod / bar, zirconium wire, zirconium parts and so on.
If there's anything you need, please give us your size, quantity, application and drawing.
We will give you our very competitive price for pure zirconium and zirconium alloy products.

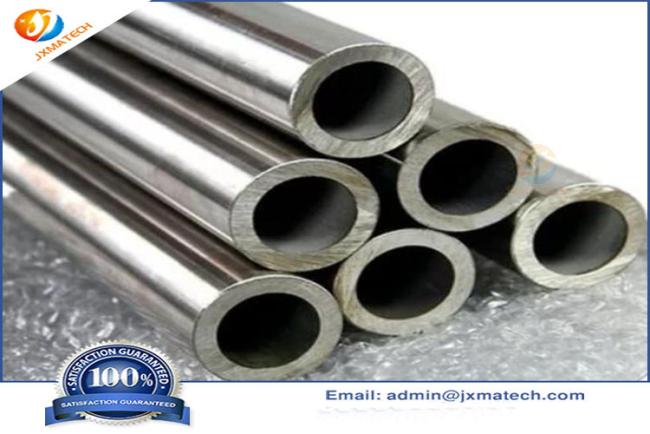

Zirconium Tube/Pipe Picture:
