Casting Steel Barge Corner Plate ASTM A27-70-36 Marine Outfitting
Price:
Based on quotation
MOQ:
1 Unit
Delivery Time:
Based on project requirements
Brand:
Zhongyuan Marine Equipmen
Product Description

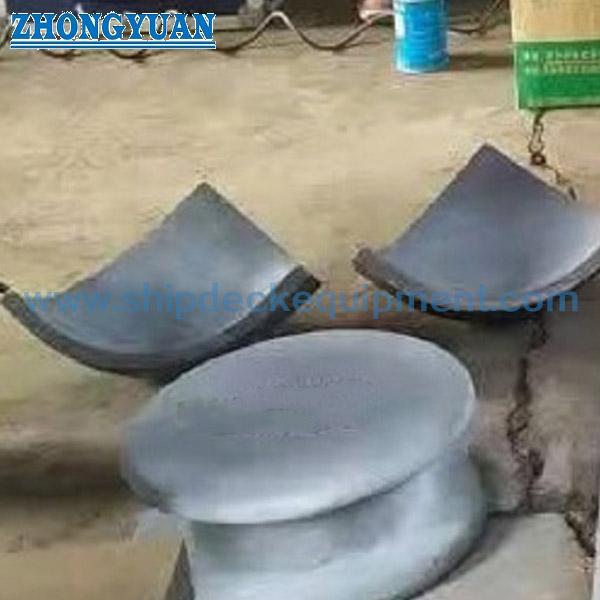

Casting Steel Barge Corner Plate ASTM A27-70-36 Marine Outfitting
Description
Casting steel barge corner plate is made of ASTM A27-70-36 and has 6” and 12” size. We can provide corner plate made from mild steel which use the mould tool to form. Casting steel has been heat treated before delivery with good mechanical property and surface quality.
Main Technical Specification
- Model Type: Steel corner plate;
- Dimensions(inches): 6" and 12” or as customized
- Material Grade: Mild Steel, Casting Steel;
- Quality Control: Material Mechanical Test, Heat treatment;
- Surface treatment: Sandblasting
- Certificate: ABS approval, Mill’s material certificate.
Main Technical Parameters:
| Description | Type | Dimensions | Weight | ||||
| A | B | C | D | E | (lbs) | ||
|
486-6 Corner plate |
6” | 8.75” | 6.75” | 2” | 6” | 0.75” | 54 |
|
487-12 Corner plate |
12” | 14.75” | 12.75” | 2” | 12” | 0.75” | 167 |

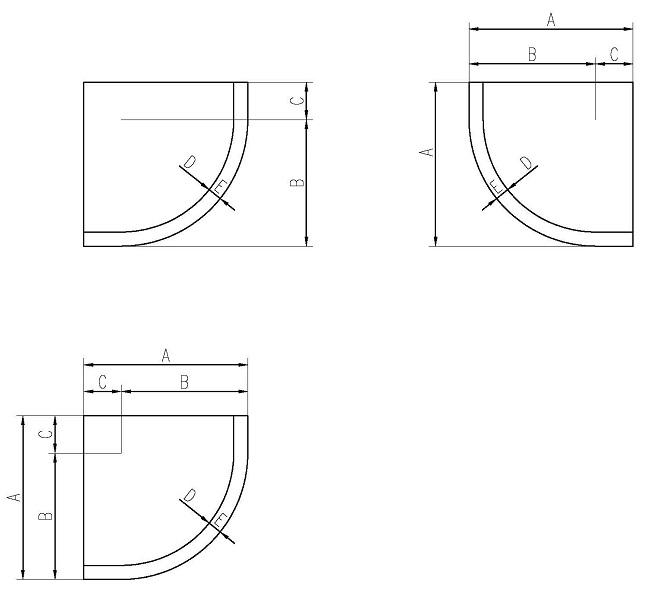

Drawing of ASTM A27-70-36 Casting Steel Barge Corner Plate Marine Outfitting
