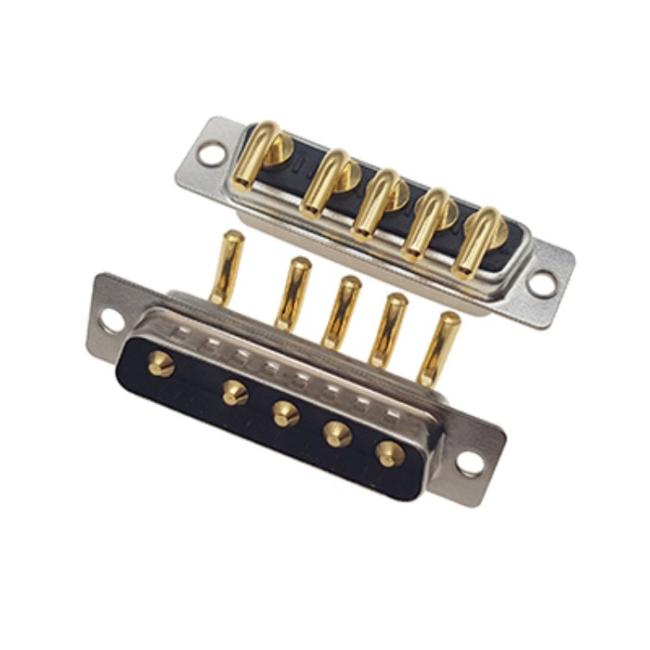

High Power 5W5 Male Right Angle DIP Full Gold Plated Connector

Price Negotiable

Price: 100 - 999 Pieces = $3.26, 1000 - 4999 Pieces = $3.16, 5000 - 9999 Pieces = $3.06, ≥ 10000 Pieces = $2.98

MOQ: 100 Pieces

Delivery Time: 7 Days

Brand: DZ

Product Description

High Power 5W5 Male Right Angle DIP Full Gold Plated Connector

# Full Gold Plated Connector Properties
1.MATERIAL:
1-1.OUTSIDE SHELL: SPCC & BRASS
1-2.HOUSING:PBT
1-3.TEMINARL: COPPER ALLOY
2.PLATING SPECIFICATION
2-1.TERMINAL: 2U" Full GOLD PLATED.
2-2.SHELL: NICKEL PLATED.
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE: 5N~20N.
3-2.WITHDRAWAL FORCE: INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY: 10000 CYCLES.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING: 10A 20A 30A 40A.
4-2.LLCR: CONTACT: 40mΩ MAX(INITIAL).
4-3.INSULATION RESISTANCE:UNMATED: 100MΩ MIN.
4-4.DIELECTRIC WITHSTAND VOLTAGE: 100V/AC.
5.OPERATING TEMPERATURE RANGE: -55°C~85°C.
6.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
