Large Tie Rod Compensator Is Safe And Leak-Free, Large Compensation Amount, Low Cost

The large tie rod transverse corrugated compensator (pipe expansion joint, metal corrugated expander) can compensate the transverse and angular displacement of the curved pipe section.

Large tie rod transverse corrugated compensator use

The large tie rod corrugated compensator has the advantages of large compensation, turbid steel, no medium pressure thrust, safety and no leakage, and low cost. It has been widely used in recent years.

The structure and working principle of the big tie rod

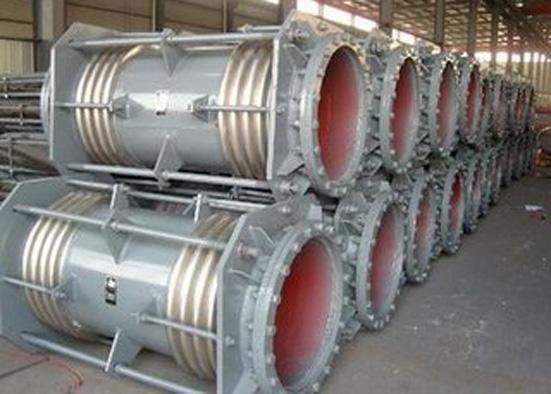

The big tie rod corrugated compensator (also known as the compound tie rod) is a flexible component composed of two bellows, end pipes, short plates and tie rods, which can absorb the single plane or Multi-plane lateral displacement. The long pull rod can withstand the internal pressure thrust and the external force of other accessories. The bolts at both ends of the pull rod have been adjusted before leaving the factory. The large pull rod is loose before installation. After the compensator is deformed, the large pull rod can limit the amount of deformation and protect The role of bellows.
