ASTM A106 30 Degree Q235 8mm Pipe Fittings Elbows , Ceramic Lined Elbow

Price Negotiable

Price: CN¥645.78 - CN¥12,915.60

MOQ: Quantity(Pieces) 1 - 200 >200

Delivery Time: 3-5 days

Brand: Ze Xu

Product Description

Ceramic lined elbow stainless steel pipe alumina ceramic lined pipe ceramic pipe

Packaging & Delivery

Packaging Details: High hardness ceramic lined elbow with low price
1. Small size:, polywood case
2. Big size: plastic pallet or steel framework with plastic fasten film
3.customized package as required

Lead Time :

Quantity(Pieces)	1 - 10	>10
Est. Time(days)	7	To be negotiated

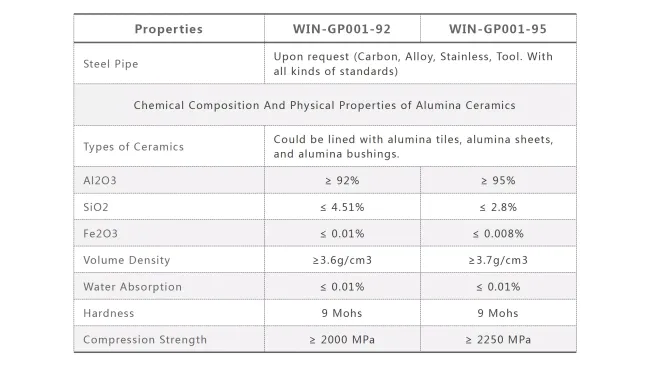

Technical Data Sheet

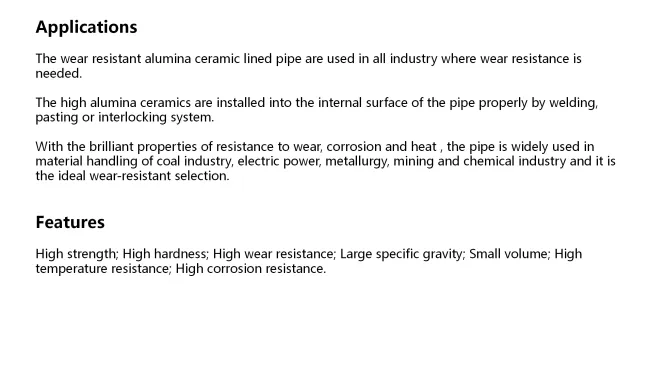

Application and Features

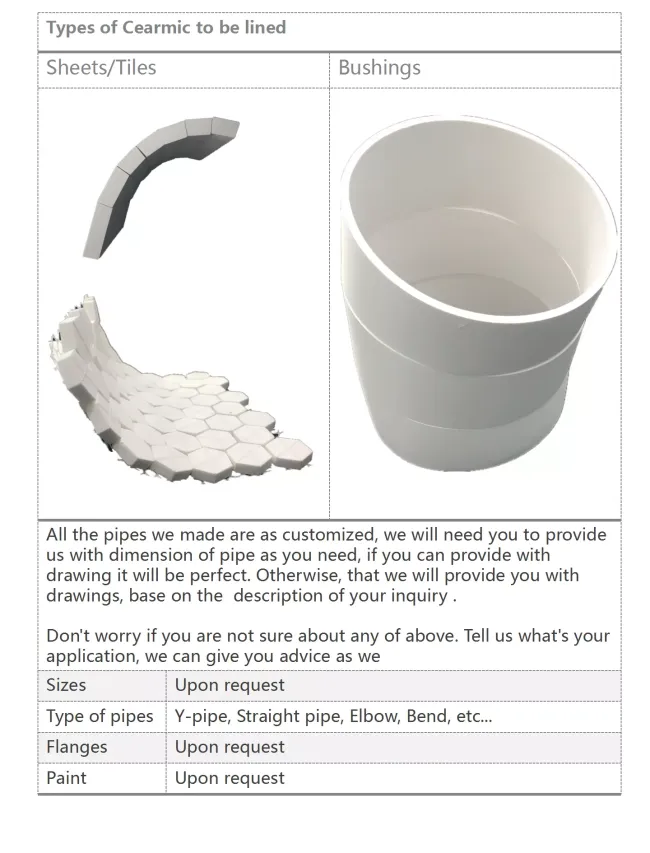

Types and Sizes

Note: If you don't have the drawing of the pipe you want, then we may send you a form as following which need you to fill in as many as you can. For such products, we have to make sure all the details.
Standard/Type of Steel	Length of Pipe (Radius of elbow)	Thickness of Steel (No needed if you have told the dimensional standard of steel, such as ASME B36.10M, etc...)	Thickness of Ceramic lining	Outer diameter of Pipe
Inner diameter of pipe (Could be before or after ceramic lined)	Standard/Type of Flanges(If required)	Bend Angle(For elbow/bend only )	Details of Flanges(If does not follow the standard) Such as Outer diameter of flanges, Inner diameter of flanges, Distance between bolt hole center, etc...
