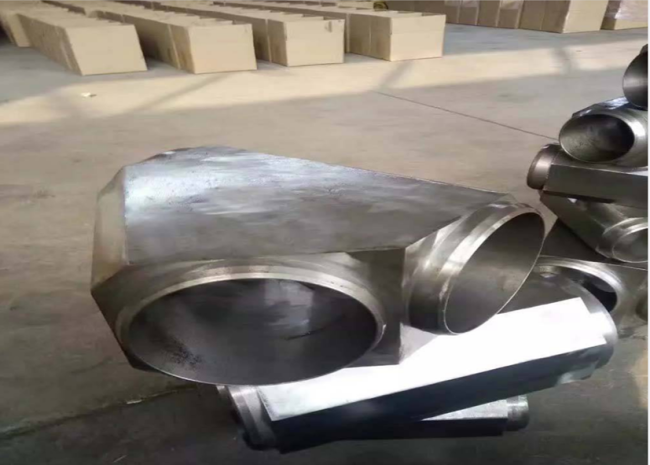

60° Oblique Tee F60 24" Forged Pipe Fittings Large Diameter
Forged 60° Oblique Tee F60 24" Oblique Tee Large Diameter Oblique Tee
Forged tee is mainly a high-pressure pipe connection fitting that is formed from round steel or steel ingot by die forging blank, and then processed by lathe. The series includes three types of connection: socket welding connection (SW), butt welding connection (BW), threaded connection (TR) forged socket pipe fittings withstand pressure levels, general socket welding, butt welding connection type pipe fittings pressure grade points It is 3000LB (SCH80), 6000LB (SCH160), 9000 (XXS), and the pressure grade of threaded connection pipe fittings is divided into 2000LB, 3000LB, 6000LB.
Tee is a kind of chemical pipe fitting with three openings, namely one inlet and two outlets; or two inlets and one outlet. There are T-shaped and Y-shaped, with equal diameter nozzles and reducing nozzles, which are used for Where three identical or different pipelines converge. The main function of the tee is to change the direction of the fluid.
|
Product Name
|
elbow, tee, coupling , nipple, plug, cap, weldolet, threadolet, sockolet, socket, cap, cross, flangolet, union, swage nipple, etc.
|
|||
|
Size
|
1/8"-4" threaded and socket weld type
|
|||
|
Pressure
|
2000#,3000#,6000#,9000#
|
|||
|
Standard
|
ANSI B16.11, EN10241, MSS SP 97 etc.
|
|||
|
Wall thickness
|
SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
|
|||
|
|
Stainless steel: A182 F304/304L, A182 F316/316L, A182 F321, A182 F310S, A182 F347H, A182 F316Ti, A182 F317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo and etc.
Carbon steel: A105, A350LF2, Q235, St37, St45.8, A42CP, E24 , A515 Gr60, A515
Gr 70 etc.
|
|||
|
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc.
Pipeline steel:A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.
|
||||
|
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C 276, Monel400, Alloy20 etc.
Cr-Mo alloy: A182 F11,A182 F5, A182 F22, A182 F91, A182 F9, 16mo3 etc.
|
||||
|
Application
|
Petrochemical industry;avation and aerospace industry;pharmaceutical industry;gas exhaust;power plant;ship buliding;water treatment,etc.
|
|||
|
Advantages
|
Ready to ship
|
|||
