Shielded LMR400 RG58 RG6 RF Dual Single Coaxial TV Cable 75OHM
Hot Sale Shielded Coaxial Cable LMR400 Cable 75OHM RG58 RG6 RF Signal TV Cable Dual Single
1. Inner Conductor: Bare Copper, CCA, CCS available
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, CCS, TC available
5. Braid wire diameter: 0.01mm, 0.08mm 0.12mm available.
6. Braid net: 48, 64, 96,112,128,144,160 and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: ISO9001, RoHS, etc.

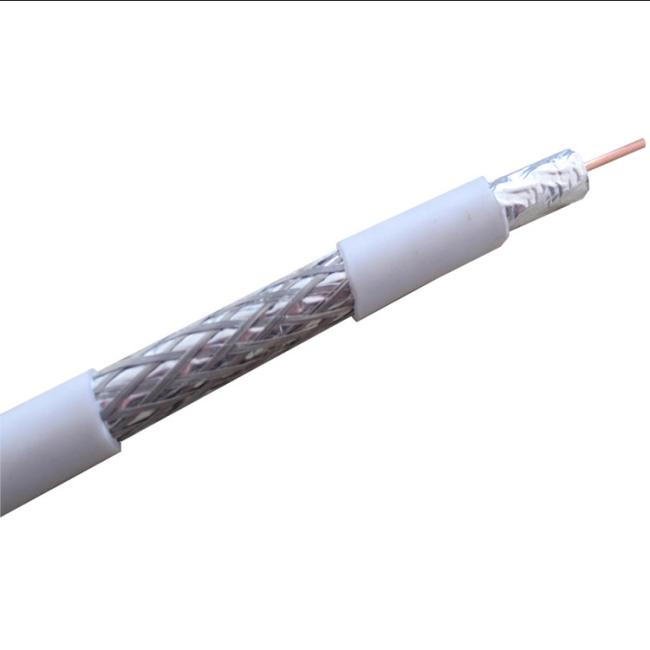

Product structure
Conductor :Solid bare copper
Insulation: Solid PE
Braids:Foil + CCA 48P/64P/80P/96P/112P/128P/144P/160P Braids
Jacket:polyvinyl chloride / FR-PVC
Electrical characteristics
Impedance:75±3OHM
Capacitance:66±3pF/m
Max attention: 20°C
Flammability grade: CMX, CM
Operating temperature: -25~70°C or -40~70°C
Insulation resistance: 5000MOHM/km
Reference GB/T14864-93 Standards.
Description for RG58U with power cable
Mainly used for the distribution and access of electronic communication equipment,
RF transmitter unit of communication system, building cabling and CATV;
the most striking features are broadband and high speed; currently,
also widely used in the multimedia transmission field; conforms to RG58U.
Product Description
FAQ:
Q. How long is the warranty?
A. We offer 1-years-warranty
