China GYXTW G652D Outdoor Singlemode Loose Tube Fiber Cable for sale

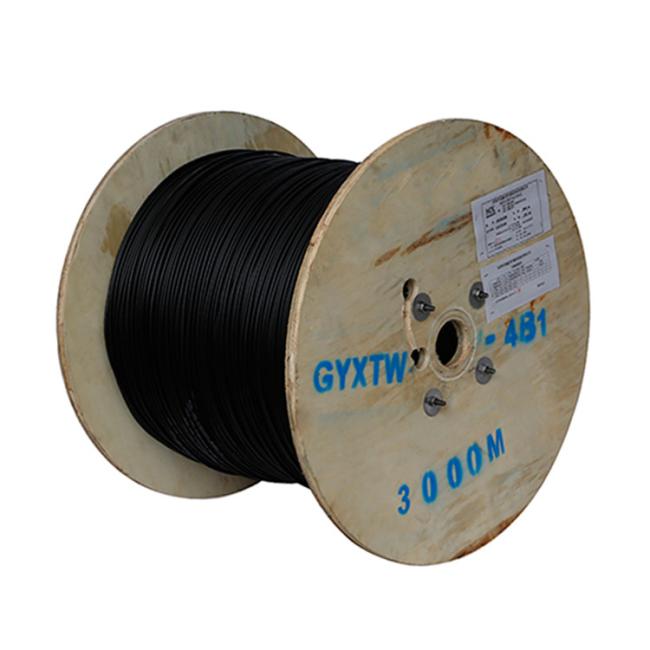

GYXTW G652D Outdoor Singlemode Loose Tube Fiber Cable

Price Negotiable

Price: Negotiation

MOQ: 1000 meters

Delivery Time: 3-7Work Day

Brand: OEM/ ODM/ YUEXIANKE

Product Description

GYXTW Fiber Cable Outdoor Loose Tube Fiber Optic Cable Manufacturer Gyxtw G652d Fiber

Features

Low dispersion and attenuation

Proper design, precise control for fiber excess length and distinct stranding process render the cable
excellent mechanical and environmental properties

Compact structure and lightness, flexible and good bend-resistant performance

With small cable diameter, light cable weight, self-supporting

Operating Temperature : -40 ~ +60 C

The tube color is nature. And fiber color in the tube starts from No. 1 Blue

No.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Purple	Pink	Aqua
No.	13	14	15	16	17	18
Color	Blue S100	Orange S100	Green S100	Brown S100	Gray S100	White S100
No.	19	20	21	22	23	24
Color	Red S100	Nature S100	Yellow S100	Purple S100	Pink S100	Aqua S100

Product Paramenters

SN	Item	Unit	Value
1	No. of fibers	count	4/6	8/12	24
2	Tube diameter	count	2.2	2.4	3.2
3	Cable diameter(±5%)	mm	8.5	8.7	9.5
4	Cable weight(±10%)	kg/km	72	74	87
5	Short term tension	N	1500
6	Short term crush	N/100mm	1000

Characteristic of Optical Cable

1 Min. bending radius for installation

Static: 15 x cable diameter Dynamic: 20 x cable diameter

2.Application temperature
range Operation: - 40℃ ~ +60℃
Installation: -10℃ ~ +60℃
Storage/transportation: - 40℃~ +60℃

3.Main mechanical & environmental performance test

Item	Test Method	Acceptance Condition
Tensile Strength IEC 60794-1-2-E1	- Load: Short term tension - Length of cable: about 50m - Load time: 1min	- Fiber strain £ 0.6% - No fiber break and no sheath damage.
Crush Test IEC 60794-1-2-E3	- Load: Short term crush - Load time: 1min	- Loss change £ 0.1dB@1550nm - No fiber break and no sheath damage.

Characteristic of Optical Fiber

G652D fiber information

Mode field diameter (1310nm): 9.2mm±0.4mm

Mode field diameter (1550nm): 10.4mm±0.8mm

Cut off wavelength of cabled fiber (lcc): £1260nm

Attenuation at 1310nm: £0.36dB/km

Attenuation at 1550nm: £0.22dB/km

Bending loss at 1550nm (100 turns, 30mm radius): £0.05dB Dispersion in the range 1288 to 1339nm: £3.5ps/ (nm•km)

Dispersion at 1550nm: £18ps/ (nm•km) Dispersion slope at zero dispersion wavelength: £0.092ps/ (nm2•km)

FAQ

1.What is your MOQ?

Could be coordinated if you have detail requirements.

2.How about your delivery date?

Delivery date is about 3-5days, it depends on the order quantity.

3.Can you supply sample for customers?

Of course, however the delivery cost will be charged on customer's account.

4.How about your price?

We are supplying products with very competitive price based on good performance.

5.Do you offer OEM Service?

We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce according to your requirment and description.
