Single mode Optical GYTA Outdoor 4 Core Non-Armored Fiber Optic Cable/Communication Cable
Description: Single mode Optical GYTA Outdoor 4 Core Non-Armored Fiber Optic Cable/Communication Cable
"Single mode Optical GYTA Outdoor 4 Core Non-Armored Fiber Optic Cable/Communication Cable "is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound.
Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
Characteristics of Single mode Optical GYTA Outdoor 4 Core Non-Armored Fiber Optic Cable/Communication Cable
· It has good mechanical and temperature properties.
· The loose tube material itself has good hydrolysis resistance and high strength.
· The tube is filled with a special grease to provide critical protection to the fiber, good pressure resistance and softness.
· Double coated steel strip (PSP) improves the moisture resistance of the cable.
· Two parallel wires ensure the tensile strength of the cable.
· Small diameter, light weight and easy to lay.
Structure and Technical specifications of Single mode Optical GYTA Outdoor 4 Core Non-Armored Fiber Optic Cable/Communication Cable
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
|
Attenuation (+20X) |
850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 9.7 | 76 | 6 | 5 | 1500 | 600 | 1000 | 300 |
| 32~48 | 10.7 | 90 | 8 | 6 | 1500 | 600 | 1000 | 300 |
| 50~72 | 11.6 | 110 | 12 | 6 | 2000 | 600 | 1000 | 300 |
| 74~96 | 13.0 | 135 | 12 | 8 | 2000 | 600 | 1000 | 300 |
| 98~144 | 15.1 | 190 | 12 | 12 | 2000 | 600 | 1000 | 300 |
Note : This datasheet can only be a reference, not a supplement to the contract,final subject to Contract.
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service
Q3:How to Place an order?
A8:Pls send us your purchase order by email or you can ask us to send you the proforma invoice for your order.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), L/C, Western Union, Money Gram, PayPal, etc.
Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q6: What’s the leading time? (How long do you need to prepare my goods?)
A6: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment.Big order shall be in 7-30 days.
Q7: How will you delivery my goods ?
A7: It will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo.

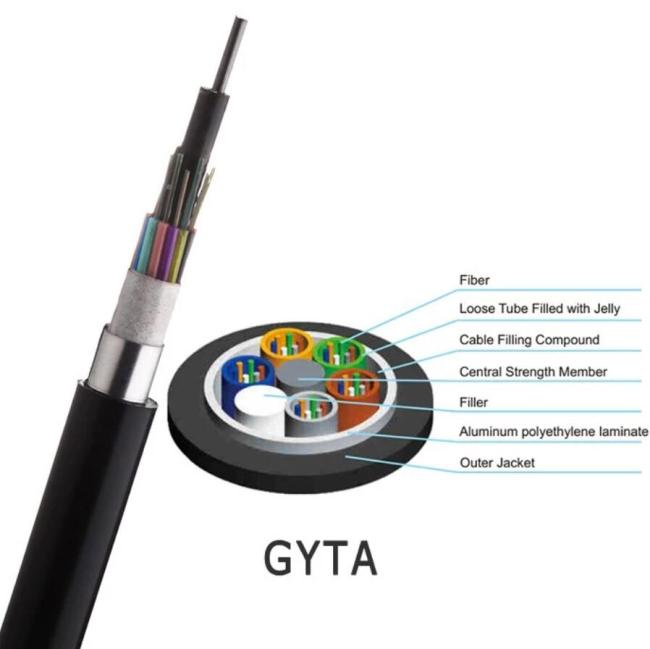

Drawings of Single mode Optical GYTA Outdoor 4 Core Non-Armored Fiber Optic Cable/Communication Cable
