6 Die 6 Blow Nut Cold Heading Machine For Fastener Hardware Special Shaped Parts
6 Die 6 Blow Nut Cold Heading Machine Fastener Hardware Special-shaped Parts Producing Machine
Products Description
Multi stations nut cold heading machine is a kind of high efficiency and automatic specialty in metal cold extrusion forming machinery, Chemical machinery and equipment, its own superior cold heading machine forming technology and advanced processing characteristics make it can be widely usedlt is used in various fields of national economy, such as fastener, hardware and special-shaped non-standard prats.
Excellent production performance: the best conditions of various mold specification in order to achieve a molding products. The high rigidity of the basic structure provides stable and reliable cold forging. Advanced automated configuration will help the industry to improve production efficiency, reduce costs and increase profits.
1. High rigidity bed: spheroidal graphite cast iron with allow added.
2. Cutting system: the guide plate is used to drive the cutter bar, the guide plate is reciprocating, the cutting force is transmitted in a sreaight line, and the force is stable and the balance is good.
3. Lengthening of copper sleeve: the lengthened crankshaft and the impact connecting rod are made of alloy cylinder, which has large impact bearing capacity, long service life and low maintenance cost.
4. Clamp frame: the clamp frame system can be truned over 90 and 180 degrees, which is more conducive to the arrangement of molding process.
5. Main slider: slide block T design, more stable operation, more conducive to high operation, more conducive to high precision, complex shage of the product, slide block side plate with adjustable design.

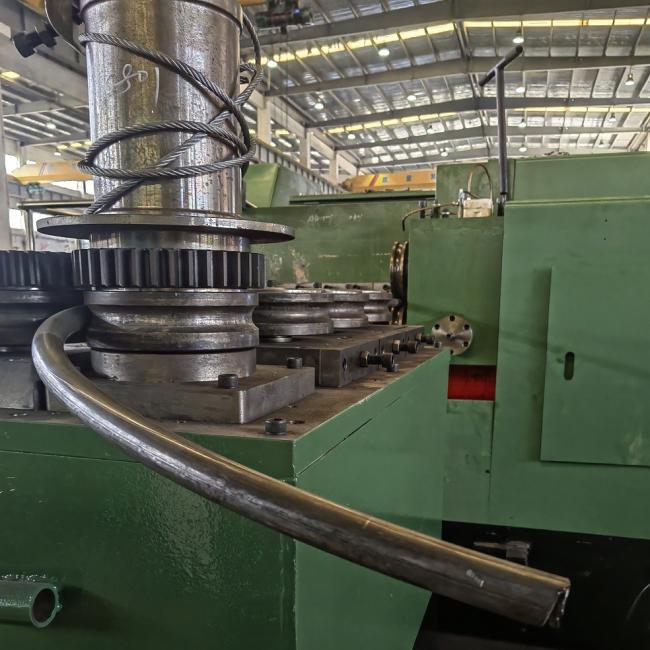

6. Feed part: ratcheting mechanism, coordinated and orderly, gear through special treatment, high transmission precision, strong wear resistance, high life.
7. Bearing type: high quality bearings, low friction resistance, sufficient lubrication, high speed and flexible equipment operation, stable and durable products.
Technical parameter of 6 Die 6 Blow Nut Cold Heading Machine Fastener Hardware Special-shaped Parts Producing Machine:
| No. | Name | Unit | 11B20LT | 11B40LT | 11B50LT | 12B25LT | 14B25LT | 14B30LT | 14B40LT |
| 1 | Forging station | mm | 6S | 6S/7S | 6S/7S | 6S | 6S | 6S | 6S/7S |
| 2 | Cut-off diameter | mm | 11 | 11 | 11 | 12 | 14 | 14 | 14 |
| 3 | Cut-off length | mm | 3.3~22 | 6~40 | 8.5~54 | 3.3~22 | 5.0~25 | 7.0~33 | 10.2~42 |
| 4 | Kick-out length | mm | 27 | 44 | 58 | 27 | 33 | 39 | 46 |
| 5 | Center distance | mm | 50 | 50 | 50 | 50 | 60 | 60 | 60 |
| 6 | Forging power | ton | 65 | 65 | 65 | 65 | 90 | 120 | 120 |
| 7 | Main motor | HP | 15 | 15 | 15 | 15 | 30 | 30 | 30 |
| 8 | Oil consumption | L | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 |
| 9 | Machine weight | ton | 4.5 | 6/6.5 | 6/6.5 | 6 | 8.5 | 9 | 9.5/10 |
| 10 | Machine dimension | L(mm) | 2500 | 2800 | 2870 | 2800 | 3000 | 3300 | 3300 |
| W(mm) | 1600 | 1620 | 1620 | 1620 | 2000 | 2200 | 2200 | ||
| H(mm) | 1200 | 1200 | 1200 | 1200 | 1500 | 1800 | 1800 |
Our Main Products:
*Multi-station bolt forging machine
*Nut forming machine
*Open/close mould cold heading machine
*High speed cold heading machine
*High speed threading machine
*Hexagon head trimming machine
*Semi-tubular rivets cold heading machine
*Full-tubular rivets cold heading machine
*Thread rolling machine
