Excavator Slewing Motor Pc40 Pc60-7 Swing Motor Assy 708-7T-00470 Second Hand

Price Negotiable
Price: Negotiable price
MOQ: 1 piece
Delivery Time: 1-7days
Brand: Belparts
Product Description

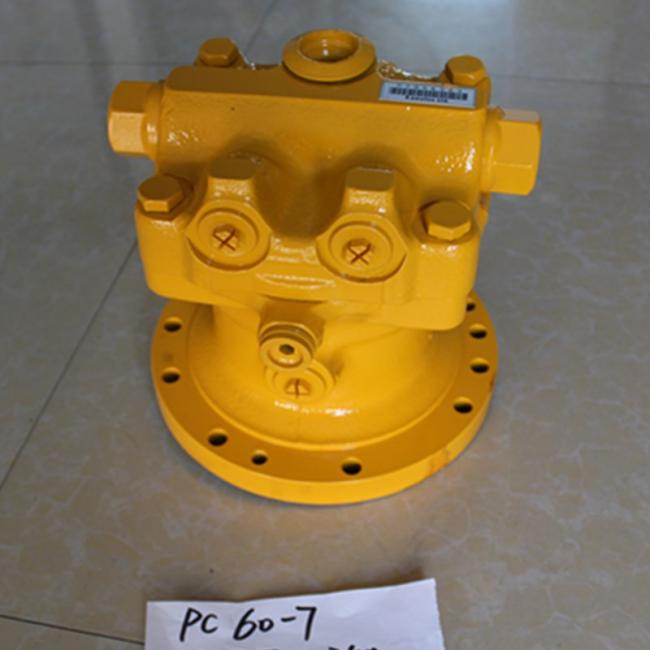

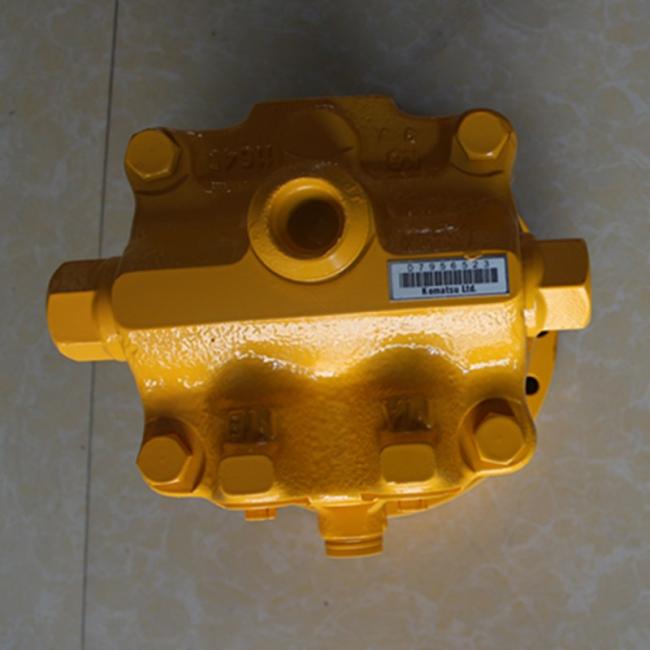

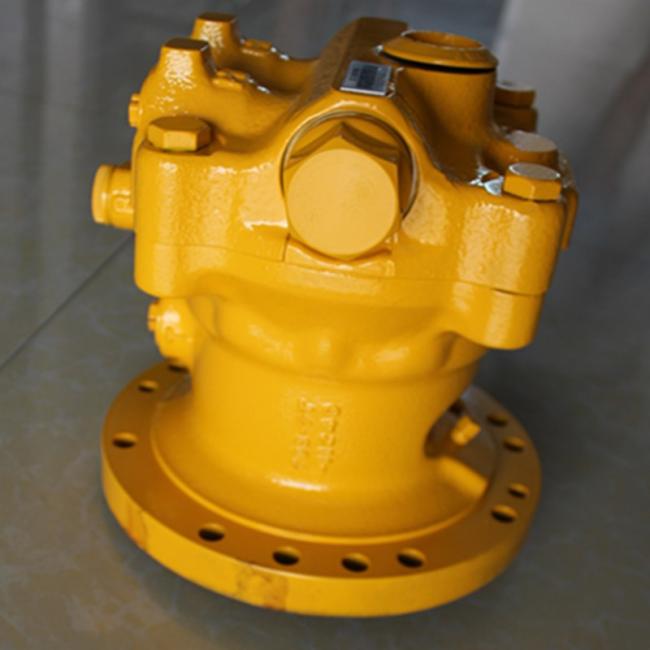

Excavator Slewing Motor pc40 pc60-7 Swing Motor Assy 708-7T-00470 second hand


Appliion:Excavator
Part name:swing motor
Material:Steel
Model:pc40 pc60-7
Part number:708-7T-00470
Payment term:37*36*52
Delivery:56KG
Brand:Belparts

Appliion

Excavator

Part name

swing motor

Material

Steel

Model

pc40 pc60-7

Part number

708-7T-00470

Payment term

37*36*52

Delivery

56KG

Brand

Belparts



# Part No Part Name Qty. Price request
1 708-7T-00470 MOTOR ASS'Y 1
1 708-7T-00360 MOTOR ASS'Y 1
1 708-7T-00240 MOTOR ASS'Y 1

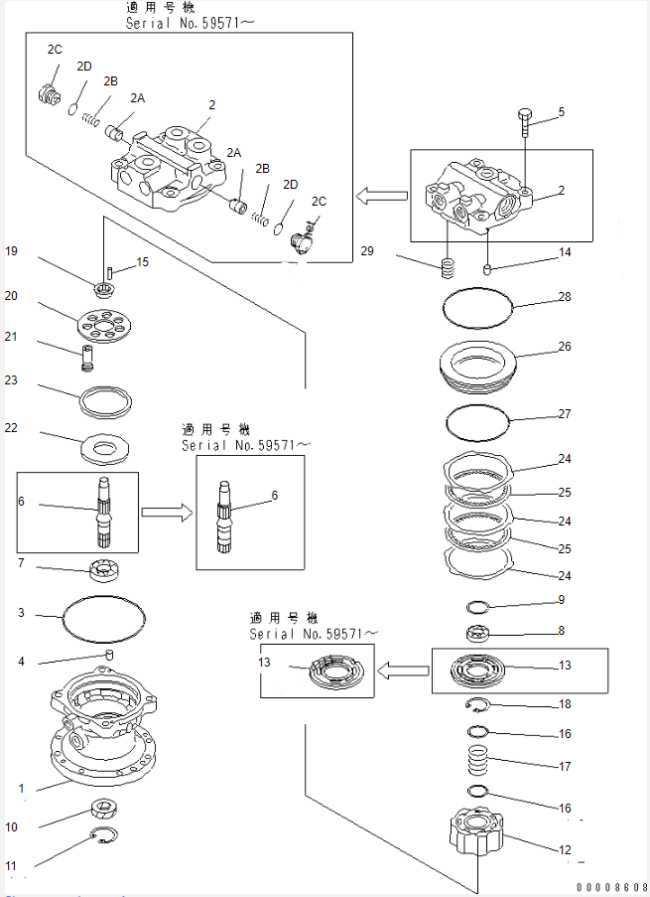

    THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 TO Y1640-02A0A
1 708-7T-01210 MOTOR SUB ASS'Y 1
1 708-7T-01040 MOTOR SUB ASS'Y 1
1 (*708-7T-11240) CASE, MOTOR 1
2 (*708-7T-11670) COVER,END 1
2 (*708-7T-11640) COVER,END 1
2A 706-73-72420 Bushing 2
2B 706-73-72440 Spring 2
2C 706-73-72430 Plug 2
2D 07002-12434 O-RING,(FOR 2-ACTUATER ATTACHMENT) 2
3 (*708-7T-51210) O-ring 1
4 (*720-68-19610) PIN,DOWEL 2
5 (*01010-81250) Bolt 4
6 (*708-7T-12420) Shaft 1
6 (*708-7T-12220) Shaft 1
7 (*708-7T-12240) Bearing 1
8 (*708-7T-12250) Bearing 1
9 (*708-7T-05020) SPACER KIT 1
9   SPACER? 1.6MM 1
9   SPACER? 1.7MM 1
9   SPACER? 1.8MM 1
9   SPACER? 1.9MM 1
9   SPACER? 2.0MM 1
9   SPACER? 2.1MM 1
9   SPACER? 2.2MM 1
10 708-7T-12230 GASKET, SEAL 1
11 04065-04518 RING,SNAP (ITL) 1
12 (*708-7T-13140) BLOCK, CYLINDER 1
13 (*708-7T-13290) PLATE,VALVE 1
13 (*708-7T-13261) PLATE,VALVE 1
14 (*720-68-19610) PIN,DOWEL 1
15 (*708-7T-13540) Pin 3
16 (*708-7T-13530) Washer 2
17 (*708-7T-13570) Spring 1
18 (*04065-03815) RING, SNAP 1
19 (*708-7T-13510) GUIDE,RETAINER 1
20 (*708-7T-13342) RETAINER,RETAINER 1
21 (*708-7T-13352) PISTON SUB ASS'Y 7
21 (*708-7T-13611) PISTON SUB ASS'Y 7
22 (*708-7T-53420) PLATE,THRUST 1
22 (*708-7T-13421) THRUST PLATE 1
23 (*708-7T-13710) Spacer 1
24 (*708-7T-52512) Plate 3




Processing&Testing




Delivery



  • 1.Outside packing: standard export carton packing;
  • 2.According to orders, pack the spare parts one by one in a small plastic bag;
  • 3.Put them into small carton boxes one by one;
  • 4.Put the packed small carton boxes into bigger carton boxes one by one;
  • 5.Put the bigger carton boxes into wooden boxes if necessary especially for
  • the shipments by sea.


FAQ


1.What is the warranty time of the products?
The warranty time is 3/6 months based on the item details;We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment;if not in stock, the delivery time will be communied in advance, usually 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel motor,swing motor, travel gearbox,swing gearbox,gear parts, hydraulic pump;hydraulic parts,etc.lf you need other excavator parts, we also can supply as yourrequirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really foundsomething wrong, please provide pictures or video for us and we will check.After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do l pay?
You can pay by T/T, PayPal (for small amount) and trade assurance.
