Steel Excavator Swing Gearbox R520 31QB-10141
Excavator R520 swing reduction Slewing gearbox 31QB-10141 swing gearbox
| Product name: | R520 Swing gearbox |
| Place of Origin: | China(mainland) |
| Model: | R520 |
| Part number: | 401-00441J |
| MOQ: | 1 PCS |
| Payment term: | T/T & & Paypal |
| Delivery time: | Within 2 days after receiving the payment |
| Packing: | Standard exporting packing or as required |

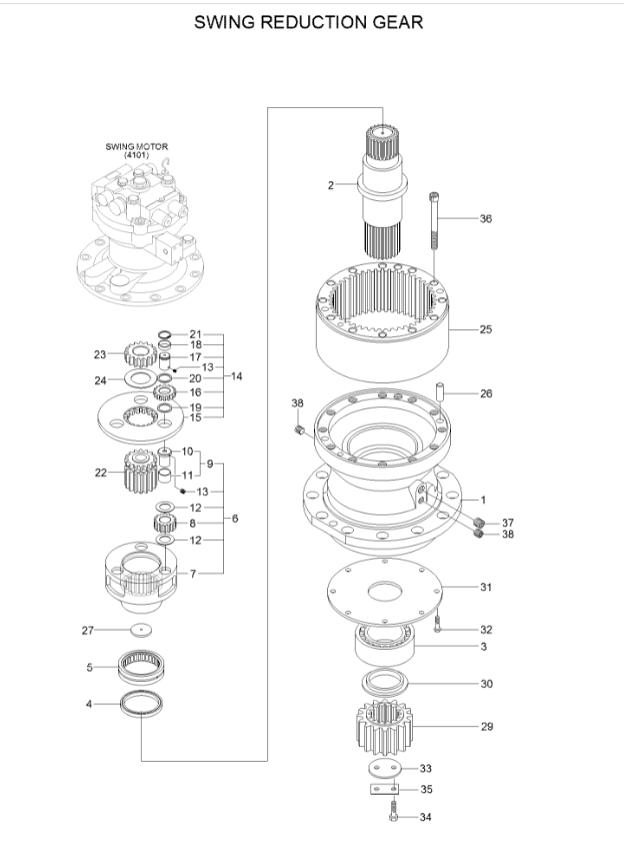

Parts on group
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *-2. | 31QB-10140 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31QB-10141 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31QB-10141AR | [1] | SWING REDUCTION GEAR | |
| 1. | XKAQ-00637 | [1] | CASING | |
| 1. | XKAQ-00964 | [1] | CASING | |
| 2. | XKAQ-00645 | [1] | SHAFT-DRIVE | |
| 3. | XKAQ-00026 | [1] | BEARING-ROLLER | |
| 4. | XKAQ-00032 | [1] | SEAL-OIL | |
| 5. | XKAQ-00647 | [1] | BEARING-ROLLER | |
| 5. | XKAQ-00961 | [1] | BEARING-ROLLER | |
| 6. | XKAQ-00753 | [1] | CARRIER ASSY 2 | |
| 7. | XKAQ-00075 | [1] | CARRIER 2 | |
| 8. | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
| 9. | XKAQ-00643 | [3] | PIN ASSY 2 | |
| 10. | XKAQ-00070 | [1] | PIN 2 | INCL 11 |
| N11. | XKAQ-00291 | [1] | BUSHING 2 | |
| 12. | XKAQ-00644 | [6] | WASHER-THRUST | |
| 13. | XKAQ-00048 | [6] | PIN-SPRING | |
| 14. | XKAQ-00754 | [1] | CARRIER ASSY 1 | INCL 13 |
| 15. | XKAQ-00531 | [1] | CARRIER 1 | |
| 16. | XKAQ-00646 | [3] | GEAR-PLANET 1 | |
| 17. | XKAQ-00415 | [3] | PIN 1 | |
| 18. | XKAQ-00030 | [3] | CAGE-NEEDLE | |
| 19. | XKAQ-00417 | [3] | PLATE 1-SIDE | |
| 20. | XKAQ-00416 | [3] | PLATE 2-SIDE | |
| 21. | XKAQ-00041 | [3] | RING-STOP | |
| 22. | XKAQ-00755 | [1] | GEAR-SUN 2 | |
| 23. | XKAQ-00648 | [1] | GEAR-SUN 1 | |
| 24. | XKAQ-00534 | [1] | PLATE-SIDE 3 | |
| 25. | XKAQ-00779 | [1] | GEAR-RING | |
| 26. | XKAQ-00072 | [2] | PIN-KNOCK | |
| 27. | XKAQ-00404 | [1] | PLATE-THRUST | |
| 29. | XKAQ-00287 | [1] | GEAR-PINION | OLD |
| 29. | XKAQ-00978 | [1] | GEAR-PINION | NEW |
| 30. | XKAQ-00018 | [1] | SPACER | |
| 31. | XKAQ-00031 | [1] | PLATE-COVER | |
| 32. | XKAQ-00064 | [8] | BOLT-HEX | |
| 33. | XKAQ-00043 | [1] | PLATE-LOCK | |
| 34. | XKAQ-00042 | [2] | BOLT-HEX | |
| 35. | XKAQ-00044 | [1] | WASHER-LOCK | |
| 36. | XKAQ-00065 | [12] | BOLT-SOCKET | |
| 37. | XKAQ-00049 | [1] | PLUG | |
| 38. | XKAQ-00274 | [2] | PLUG | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
