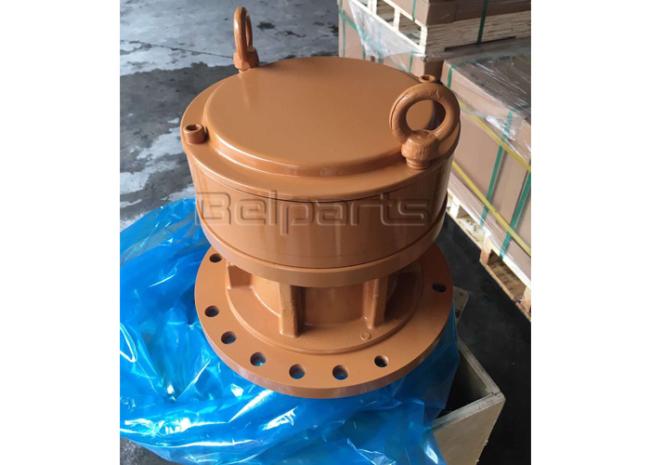

Excavator R150-9 Swing Reducer R150 Slewing Gearbox 31Q4-11131
Excavator R150-9 swing reduction R150 Slewing gearbox 31Q4-11131 swing gearbox
| Appliion | Excavator |
| Part name | Belparts swing gearbox |
| Material | Steel |
| Model | R150-9 |
| MOQ | 1PC |
| Payment term | T/T, Paypal, Trade assurance, or as required |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express, or as required |

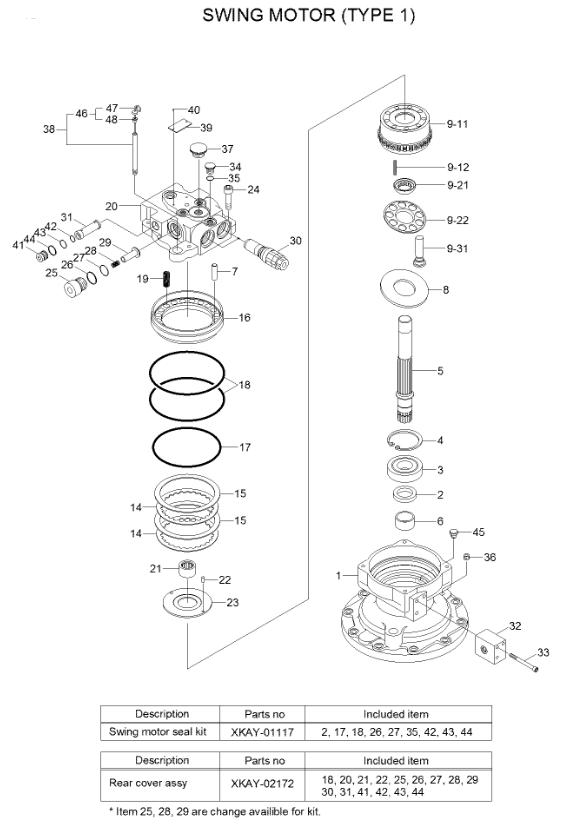

Parts on group
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| N*. | @ | [1] | SWING MOTOR ASSY | *-1,*-2 |
| N*-1. | 31Q4-11130 | [1] | SWING MOTOR UNIT | |
| *-1. | 31Q4-11131 | [1] | SWING MOTOR UNIT | |
| *-1. | 31Q4-11131AR | [1] | SWING MOTOR | |
| 1. | XKAY-01099 | [1] | BODY | |
| 1. | XKAY-02174 | [1] | BODY | OLD |
| 1. | XKAY-02199 | [1] | BODY | NEW |
| 1. | XKAY-02199 | [1] | BODY | |
| K2. | XKAY-00281 | [1] | SEAL-OIL | |
| 3. | XKAY-00282 | [1] | BEARING-ROLLER | |
| 4. | XKAY-00283 | [1] | RING-SNAP | |
| 5. | XKAY-01100 | [1] | SHAFT | |
| 6. | XKAY-00285 | [1] | BUSHING | |
| 7. | XKAY-00625 | [1] | PIN | |
| 8. | XKAY-01101 | [1] | PLATE-SHOE | |
| 9. | XKAY-01102 | [1] | ROTARY KIT | |
| 9. | XKAY-02003 | [1] | ROTARY KIT | |
| 9. | XKAY-02004 | [1] | ROTARY KIT | |
| 9-1. | XKAY-01103 | [1] | BLOCK KIT-CYLINDER | |
| 9-1. | XKAY-02005 | [1] | BLOCK KIT-CYLINDER | |
| 9-1. | XKAY-02006 | [1] | BLOCK KIT-CYLINDER | |
| N9-11. | XKAY-01104 | [1] | BLOCK-CYLINDER | |
| N9-11. | XKAY-02007 | [1] | BLOCK-CYLINDER | |
| N9-11. | XKAY-02008 | [1] | BLOCK-CYLINDER | |
| N9-12. | XKAY-00291 | [9] | SPRING | |
| N9-12. | XKAY-02010 | [9] | SPRING | |
| N23. | XKAY-01114 | [1] | PLATE-VALVE | |
| N23. | XKAY-02009 | [1] | PLATE-VALVE | |
| 9-2. | XKAY-01105 | [1] | RETAINER KIT | |
| N9-21. | XKAY-01584 | [1] | GUIDE-BALL | |
| N9-22. | XKAY-01106 | [1] | PLATE-SET | |
| 9-3. | XKAY-01107 | [1] | PISTON KIT | |
| N9-31. | XKAY-01108 | [9] | PISTON ASSY | |
| 14. | XKAY-01109 | [2] | PLATE-FRICTION | |
| 15. | XKAY-01110 | [2] | PLATE | |
| 16. | XKAY-01111 | [1] | PISTON-BRAKE | |
| K17. | XKAY-00301 | [1] | O-RING | |
| K18. | XKAY-01112 | [2] | O-RING | |
| 19. | XKAY-01585 | [16] | SPRING | |
| 20. | XKAY-01113 | [1] | COVER-REAR | |
| 20. | XKAY-02011 | [1] | COVER-REAR | |
| 21. | XKAY-00304 | [1] | BEARING-NEEDLE | |
| 22. | XKAY-00562 | [2] | PIN | |
| 23. | XKAY-01114 | [1] | PLATE-VALVE | |
| 23. | XKAY-02009 | [1] | PLATE-VALVE | |
| 24. | XKAY-00308 | [4] | BOLT-WRENCH | |
| 25. | XKAY-00309 | [2] | PLUG | OLD |
| 25. | XKAY-02200 | [2] | PLUG | NEW,KIT CHANGE |
| K26. | XKAY-00141 | [2] | RING-BACK UP | |
| K27. | XKAY-00310 | [2] | O-RING | |
| 28. | XKAY-00311 | [2] | SPRING | OLD |
| 28. | XKAY-02201 | [2] | SPRING | NEW,KIT CHANGE |
| 29. | XKAY-00312 | [2] | CHECK | OLD |
| 29. | XKAY-02202 | [2] | CHECK | NEW,KIT CHANGE |
| 30. | XKAY-02001 | [2] | RELIEF VALVE ASSY | |
| 31. | XKAY-00314 | [2] | VLV ASSY-REACTIONLESS | |
| 32. | XKAY-01470 | [1] | VALVE ASSY-TIME DELAY | |
| 33. | XKAY-00692 | [3] | BOLT-WRENCH | |
| 34. | XKAY-00150 | [3] | PLUG | |
| K35. | XKAY-00256 | [3] | O-RING | |
| 36. | XKAY-00140 | [1] | PLUG | |
| 37. | XKAY-00317 | [1] | PLUG | |
| 38. | XKAY-01115 | [1] | GAUGE-LEVEL | OLD |
| 38. | XKAY-02012 | [1] | LEVEL GAUGE ASSY | NEW |
| 46. | XKAY-02203 | [1] | LEVEL GAUGE KIT | NEW |
| 47. | XKAY-02194 | [1] | BAR-LEVEL | NEW |
| 48. | XKAY-01985 | [1] | PLUG | NEW |
| 39. | XKAY-01116 | [1] | NAME PLATE | |
| 39. | XKAY-02000 | [1] | NAME PLATE | |
| 40. | XKAY-00277 | [2] | RIVET | |
| 41. | XKAY-00322 | [2] | PLUG | |
| K42. | XKAY-00324 | [2] | O-RING | |
| K43. | XKAY-00247 | [2] | O-RING | |
| K44. | XKAY-00605 | [2] | RING-BACK UP | |
| 45. | XKAY-00137 | [1] | PLUG | |
| 49. | XKAY-02172 | [1] | REAR COVER ASSY | SEE ILLUST |
| *-2. | @ | [1] | SWING REDUCTION GEAR | SEE 4110 |
| K. | XKAY-01117 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
