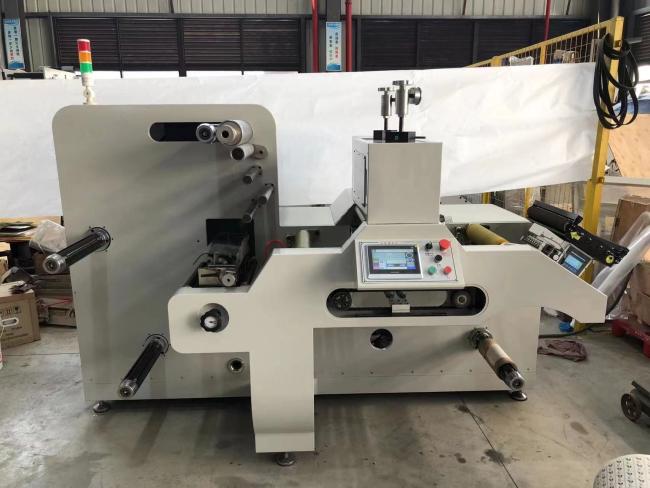

Roll To Roll Semi Rotary Die Cutting Equipment For Adhesive Label Sticker
Roll To Roll Semi Rotary Die Cutting Equipment For Adhesive Label Sticker
Product Description
Intermittent semi-rotary die-cutting is a brand new machining process, which is equipped with a servo motor motion control system and is equipped with a register sensor to arrange a high-precision rotary die-cutting system .
Main features
A: Unwinding

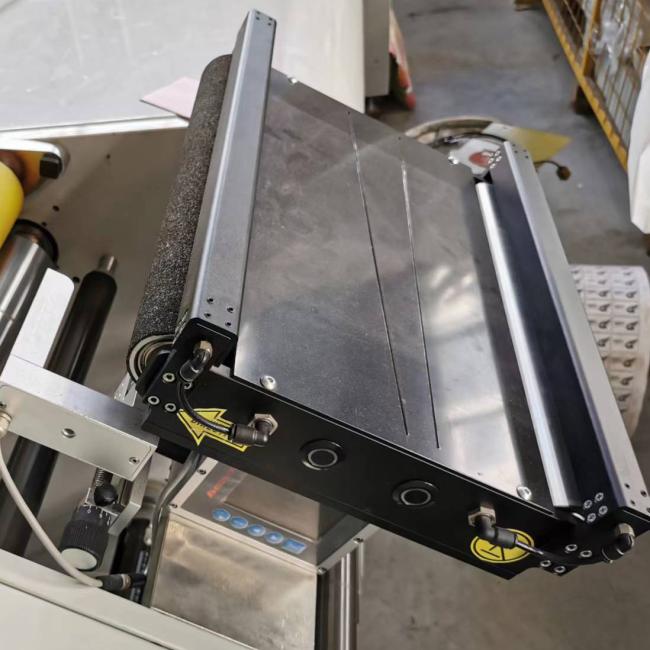

B: Web Guider

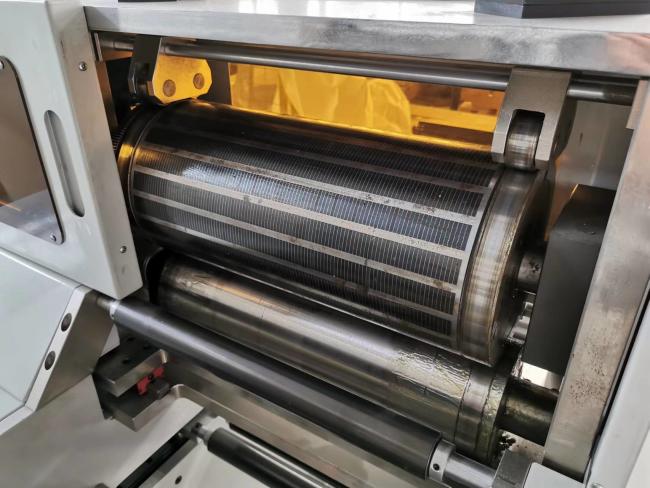

C: Maximum rotary die cutting length:480mm(160T magnetic cylinder)
D: Servo motors
E: Touch screen operating system
Main Technical Specification:
| Descriptions | Parameters |
| Max .cutting width | 350mm |
| Max unwinding diameter | 600mm |
| Max rewinding diameter | 600mm |
| Die cutting speed(half turn) | 50m/min |
| Die cutting speed(turn around) | 120m/min |
| Maximum rotary die cutting length | 480mm(160T magnetic cylinder) |
| Die-cutting positioning method | Color sensor |
| Slitting system | 12-350mm |
| Voltage | 380V+N+PE |
| Precision of overprint | ±0. 15mm |
| Power | 15kw |
| Overall dimension | 2.2 (L) ×1 .3(W) × 1.5 (H) m |
| Weight | About 1600KG |
Material details:
|
material
|
paper label, foam tape, PVC label
|
|
cutting mould
|
made by wooden
|
FQA
1.Are you factory or trading company?
We are factory.
2.What is your after service?
We offer customer a lifetime service.
3.Do you have CE certificate?
Yes, we have CE certificate of our machines.
4.What is the shipping time?
Around 15-30 days, depend on different model.
5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
