1300D High Speed Slitting Machine , OPP Film Roll Slitter Rewinder
Price:
Negotiation
MOQ:
1 set
Delivery Time:
30 working days
Brand:
ruiting
Product Description

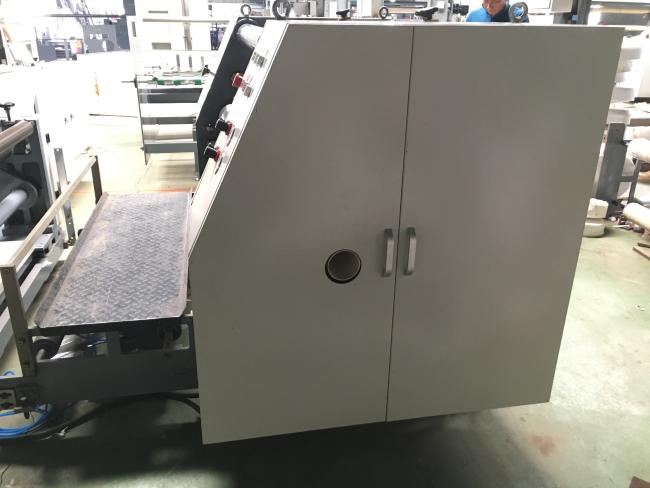

1300D OPP Film Roll Servo Motor Slitter And Rewinder Machine
Product Description
This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.
Main features
) Meter counting
2) EPC web guide system
3) Auto taper tension control
4) 10 sets rotary blade
5) PLC man- machine interface
6) 3 inch shaft for both rewinding
7) Automatic loading system
8) Max unwinding diameter 1400mm
9) Max rewinding diameter 600mm
Main Technical Specification:
| Max. web width | 1300mm |
| Max. unwinding diameter | 1400mm |
| Max. rewinding diameter | 600mm |
| Min. itemize width | 30mm |
| Slitting precision | ±0.2mm |
| Cutting speed | 5-200m/min |
| Overall dimensions(L*W*H) | 2.0*2.65*1.35m |
| Machine weight | 2600kg |
