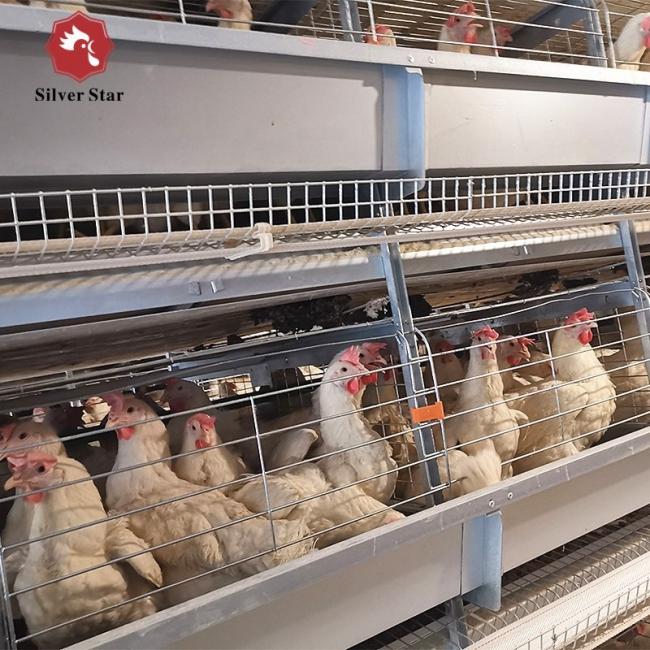

H Type Fully Automatic Battery Chicken Cage Poultry Farm Feeding Equipment 10 Tiers
H Type Fully Automatic Battery Chicken Cage Poultry Farm Feeding Equipment
Product Description
(1)Tiers:3,4,5,6,8 leves/floors
(2)Material:Q235 Hot-Dipped Galvanized,Zinc thickness: 275g/㎡
(3)Frame:Material of leg of frame is hot-dip galvanized steel with thickness: 2mm
(4)Feed trough:Material: hot-dip galvanized steel. Thickness: 1.0mm.
(5)Design:Fully Automatic Poultry Breeding Layer Egg Chicken Cage Equipment
(6)Fully Automatic System Including Egg Chicken Farm Layer Chicken Cages Body,Egg Layer Chicken Hens Battery Cage Frame,Feeders,automatic drinking system,on-rail hopper feeding system,manure removal stystem,egg collection system,Ventilation System etc
H Type Layer Battery Chicken Cage Size
| H Type Layer Battery Chicken Cage | |||
| Tier | Cell Size/ mm | Cage Size/ mm | Birds Qty |
| 3 | 650x625x500 | 650x1250x2220 | 54 |
| 4 | 650x625x500 | 650x1250x2870 | 72 |
| 5 | 650x625x500 | 650x1250x3520 | 90 |
| 6 | 650x625x500 | 650x1250x4170 | 108 |
| 8 | 650x625x500 | 650x1250x5470 | 144 |
| 3 | 450x600x410 | 1830x1200x2140 | 144 |
| 4 | 450x600x410 | 1830x1200x2790 | 192 |
| 5 | 450x600x410 | 1830x1200x3440 | 240 |
| 6 | 450x600x410 | 1830x1200x4090 | 288 |
| 8 | 450x600x410 | 1830x1200x5390 | 384 |
H Type Layer Chicken Cage Advantage
1. Simple and reliable technical design;
2. Unique structure, save time and effort;
3. Mature galvanizing process; Long service life
4. Convenient operation and simple maintenance;
H type layer chicken cage system fully meet the requirements of the biological habits of chickens. It is the high-tech prototype device with the highest-degree mechanical and electrical integration in China. It represents the development direction of poultry farming mechanization in our country, and reaches the international leading level.
