AISI 316 10in Pneumatic Rotary Valves Corrosion Resistant
AISI 316 Corrosion Resistant 10" Pneumatic Rotary Valve For Chemical Plant
Product Description

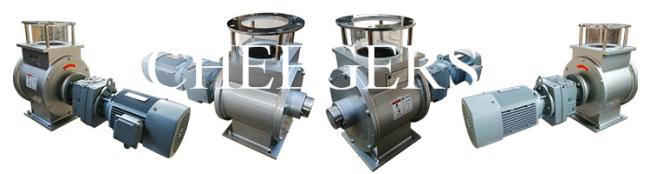

TGFY series pneumatic rotary valve are mainly composed of casing, impeller, bearing seat, observation window and other parts.
1. Casing: In order to reduce weight, increase strength and reduce deformation during processing, the casing uses steel tubes.
2. Impeller: The impeller blades form an angle of 5 degrees on the axis and spiral into the casing, which reduces the torque when the impeller rotates and improves the conveying effect of materials.
3. Observation window: The observation window is connected with the upper and lower glands with rubber sleeves, which is convenient for assembly and disassembly, and can quickly troubleshoot.
4. Transmission mechanism: In order to adapt to the use in different places, the main shaft adopts two structural forms of series transmission and separate transmission. The tandem drive adopts the shaft pin connection form, which is convenient for assembly and disassembly, light and handy, compact structure, and convenient for installation.
Main Features:
★ Clearance to be 0.06mm, perfect airlock performance
★ Provide multiple installation methods of chain drive and direct drive.
★ Configure reducer motors according to requirements.
★ The main materials are: cast iron, stainless steel series, etc.
★ The airtight performance can stand pressure to -1 bar.
★ External bearing installation, durable and excellent performance.
Dimension Display
|
Type |
External dimension | Inlet | Outlet | Install size | Shaft | ||||||||||||
| A | B | H | E | F | D1 | D2 | e | f | h | g | m | D | d | k | |||
| TGFY-5L | 410 | 300 | 435 | 250 | 170 | Φ222 | Φ152 | 180 | 150 | 160 | 220 | 130 | Φ200 | Φ35 | 50 | ||
| TGFY-7L | 420 | 310 | 435 | 260 | 180 | Φ250 | Φ162 | 182 | 160 | 160 | 230 | 140 | Φ220 | Φ35 | 50 | ||
| TFGY-9L | 470 | 310 | 435 | 260 | 230 | Φ270 | Φ192 | 182 | 210 | 160 | 230 | 190 | Φ240 | Φ40 | 50 | ||
| TGFY-12L | 520 | 370 | 530 | 320 | 238 | Φ288 | Φ208 | 240 | 218 | 190 | 290 | 200 | Φ260 | Φ40 | 50 | ||
| TGFY-16L | 570 | 370 | 530 | 320 | 280 | Φ330 | Φ250 | 240 | 260 | 190 | 290 | 240 | Φ300 | Φ40 | |||
Application
Overseas Exhibitions
Processing Procedure
1. CHEEGERS Machinery Manufacture Co., Ltd. is a professional supplier of airlock, rotary valve
2. CHEEGERS is rebuilt in 2003 from the revolution of china government factory CHIQI which built in 1958
3. We have been in airlock for 63 years and are specialized in producing all kinds of Rotary Airlock Valve.
4. At present, our products have been exported to Thailand, Canada, Indian, Morocco, Switzerland, Australia, Africa and others. We have established long-term, stable and good business relationships with many manufacturers (Buhler) and wholesalers around the world.
For every production step our workers are carefully finished. QC department is strictly following the quality standard by 100% inspection for all the products. Cheegers never stop studying,researching and developing new designs on rotary valves. Each year, we will launch new designs which suit different application conditions.
Certificate
Cheegers has got the CE for pneumatic rotary valve and diverter valve as below:
We also have other patents for rotary valve and diverter valve domestically.
Like high airtight rotary airlock valve patent, apprearance patent for airlock valves, etc
