Chemical Machinery Equipment Stainless Steel Vacuum Blender/Mixer/Homogenizer

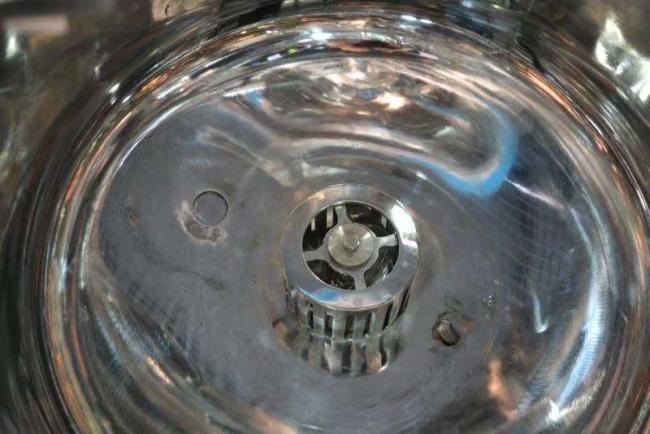

Vacuum homogenizing emulsifier mixer means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect. By the operation of hydraulic sheraing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be disperesed and emulsifed instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.

The product mainly applied in such industries as daily chemical care products, biopharmacutical industry, food industry, paint and ink ,nanometer materials, petrochemical

Industry, printing and dyeing auxiliaries, pulp & paper, pesticide, ferilizer, plastic & rubber, electronic and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.

The Vacuum homogenizing emulsifier mixer is mainly composed of water pot,oil pot,emulsifying pot, vacuum system, lifting system(optional), electronic control system (PLC is optional), operation, etc.

• Item NO.:ALW-1000L

• Lead Time:30-40 Days

• Product Orgin:China

• Shipping Port:Guangzhou/Jiangsu Port

• Payment:EXW, C&F, CIF and etc.

• MOQ:1

• Weight:800g





Product Details:





Item	MixerKW	homogenizer	Main pot heater	Water pot heater	Oil pot heater	Water pot mixer	Oil pot mixer	Vacuum pump	Hydraulic
50L	1.1	2.2kw	3kw	6kw	3kw	0.37kw	0.37kw	0.75kw	0.75kw
100L	2.2	4kw	6kw	6kw	6kw	0.55kw	0.55kw	1.5kw	0.75kw
200L	3	5.5kw	9kw	12kw	9kw	0.75kw	0.75kw	1.5kw	1.1kw
300L	4	5.5kw	9kw	12kw	12kw	1.1kw	1.1kw	2.2kw	1.5kw
500L	4	7.5kw	12kw	18kw	18kw	1.5kw	1.5kw	2.2kw	1.5kw
1Ton	5.5	11kw	18kw	18kw	18kw	2.2kw	2.2kw	4kw	2.2kw
2Ton	7.5	15kw	27kw	27kw	27kw	3kw	2.2kw	4kw
3Ton	11	18kw	36kw	36kw	36kw	4kw	3kw	5.5kw



Main feature





1) Vacuum homogenizing emulsifier mixer consist of main emulsifying mixer, water pot, oil pot, vacuum pump etc

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High quality SUS304&316L material, internal and external mirror polish.

4) High effection homogenizer, 2μm smooth finish

5) Apply to cosmetics, pharmaceutical, food etc industries.

Our Servers:

We provide Turn-key project service to customer.

1. Factory Layout design;

2. Factory Decoration based on GMP standard;

3. Formula of products;

4. Raw material etc;

5. Machine design, whole production line from A to Z;

6. Shipping service, FOB, CFR, CIF etc;

7. Installation service. Training service, Maintenance service.
